描述

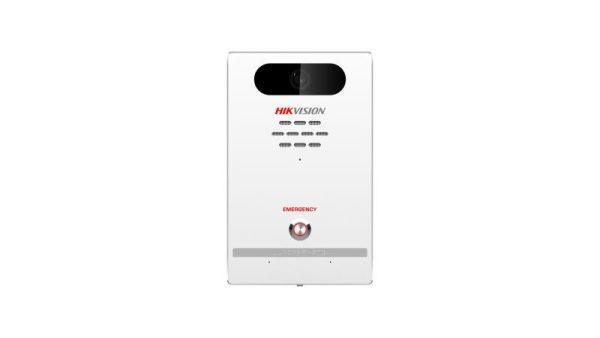

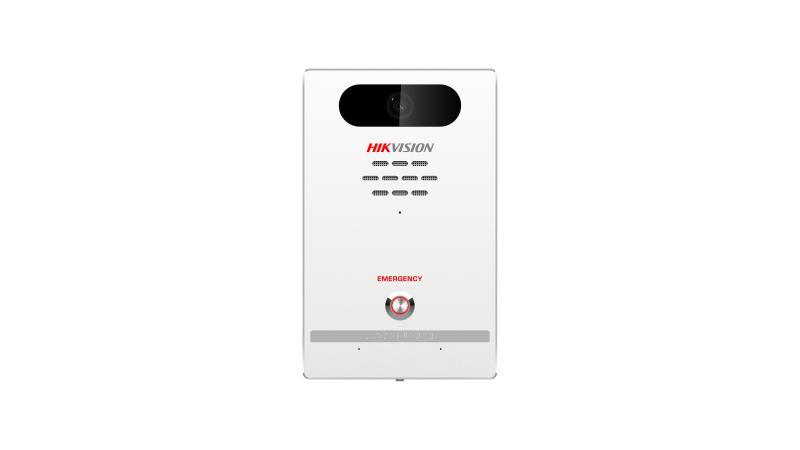

HIKVISION DS-PEAP-CVSA1(B) Video panic intercom panel 是海康威視緊急／求助對講，用於電梯廳、車場或周界。香港防盜為安裝商及經銷商。並非大堂訪客對講。規格以下方原廠資料為準。
DS-PEAP-CVSA1(B)
Video panic intercom panel
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Software features
- Wired network10 M/100 M Self-adaptive Ethernet port
- Network encryptionSupports User Lock-in and Password Security Prompt
- Cellular network3/4G Communication(AU)
- Hardware features
- Tamper-ProofSupport
- SD cardStandard Micro SD Card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G
- Video
- Video compression standardH.264;H.265
- Resolusion2560*1440
- Frame rate25fps
- Field angleHorizontal: 109° Vertical: 86° Diagonal: 142°
- Fill lightInfrared Light
- Day/night switch modeAuto switching
- Audio
- Audio input1-ch Built-in Omnidirectional Microphone Pickup Distance: 2 m listening Distance: 10 m 1-ch 3.5 mm Audio Interface for External Audio Input
- Audio output1-ch 3 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
- Audio encoding/decoding standardG.711U/PCM/ADPCM/AAC/OPUS
- Audio qualitySmart Noise Suppression
- Audio compression code rate16Kbps;64Kbps
- Electrical characteristics
- Operation temperature-40°C to 65°C
- Power supply12 VDC or RJ45 PoE
- Operation humidity10％ to 90％
- Power consumption≤40W
- General
- Shell materialMetal
- Dimension(WxHxD)190 mm × 119 mm × 47 mm
- IP rateIP65
- IK rateIK10
- Application scenarioOutdoor
- Installation methodWall-mounted
- Device management
- Alarm input2
- CameraBuilt-in 4MP HD IR Camera IR Distance ≥ 10 m
- Alarm output2
- Report method
- ProtocolTCP/IP, RTSP, SIP, ONVIF
