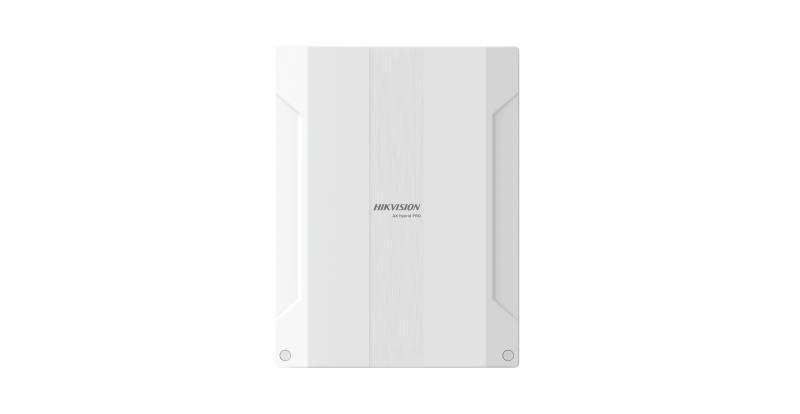

DS-PHA48-EP(B)

AX HYBRID PRO

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Software features
Zones48(8 on-board zones, max 4 wired PIRCAM)
Area16
UserInstaller: 1 Administrator: 1 Operator: 46
SMS notificationSupports (with GPRS/3G/4G module)
Onboard video clips2
ARC protocolISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0
Programming toolsWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
Firmware upgradeWeb/iVMS-4200/Hik-ProConnect
End of Line ResistanceSupport 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware features
Alarm input48 (8 on-board zones)
Alarm output48(Including 2 on-board relay outputs and 2 I/O outputs)
Power Output1. Bell: maximum 12V 1.2A 2. AUX: maximum 12V 1.5A 3. Bell and AUX maximum 12V 2.1A
3/4G on boardOptional
GPRS on boardOptional
Bus1 Speed-X bus
Sounder output1 wired on-board sounder output
Tamper-Proof1 switch to detect removal from mounting 1 switch to detect front cover open
Netowrk interface1 RJ45 10M/100M Ethernet interface

Display
Indicator4 on-board LEDs 1. 1 AC power LED indicator (Green) 2. 1 system status LED indicator (Green/Red) 3. 1 PSTN status LED indicator (Green/Red) 4. 1 mobile communication status LED indicator (Green/Red)

Electrical characteristics
Power interface100 to 240 VAC (On-board power transformer)
Power Consumption1. 220V power supply (1) With an alarm: 1.875A, 30W (2) Without an alarm: 200mA, 3.2W 2. 13.5V battery supply (1) With an alarm: 1.5A, 22W (2) Without an alarm: 150mA, 2W
Battery typeLead acid battery (12 V, 7 Ah, battery is not included by default)
Battery life spanUp to 36hrs
