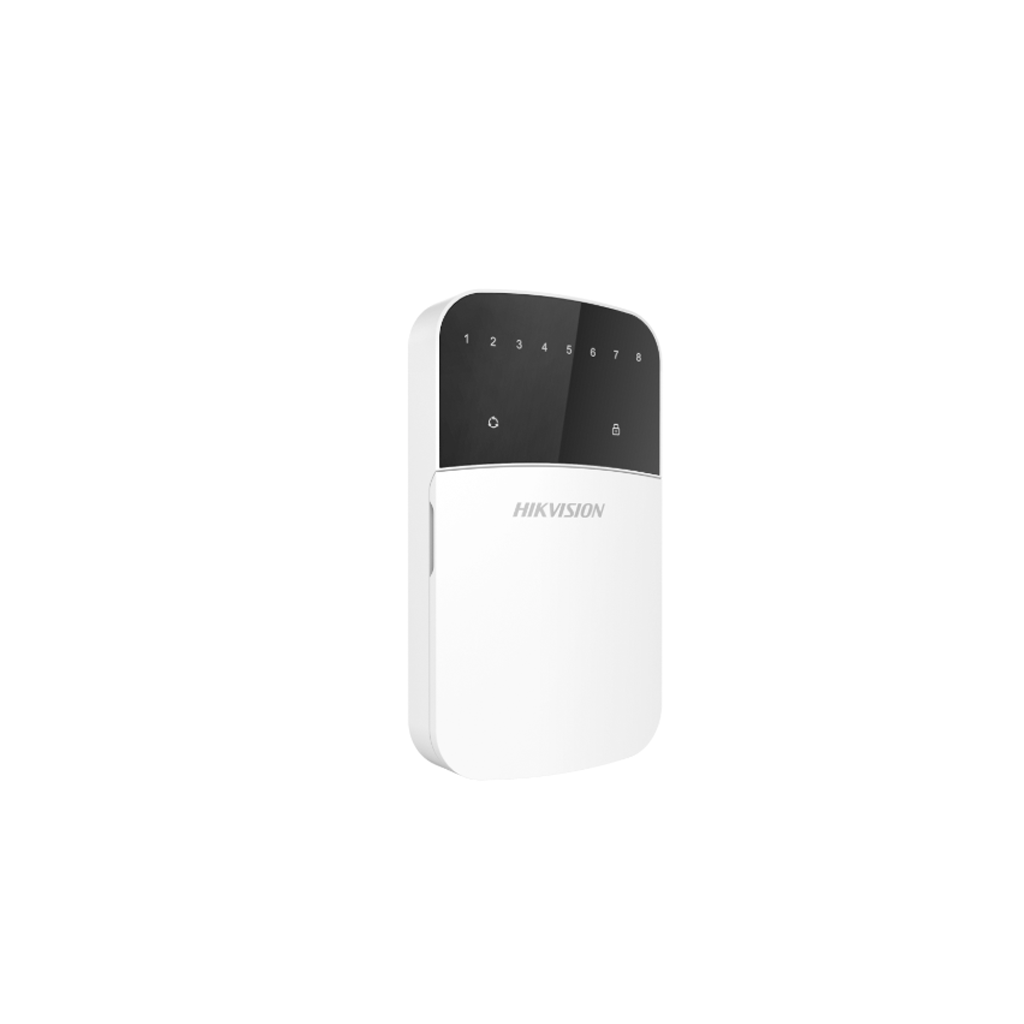

HIKVISION DS-PKG-H8L
LED Wired Keypad
Features
- Supports arming, disarming, alarm clearing, bypass etc.
- Supports real-time zone status display
- Supports tamper protection
- Supports 8-zone status indicator
Specification
| Model | DS-PKG-H4L | DS-PKG-H8L | |
| Interface & component | TAMPER switch | 1 | |
| Buzzer | 1 | ||
| Indicator | Zone status indicator: 4,red/ green |
Zone status indicator: 8,red/ green |
|
| Numeric | 12 keys: 0 to 9, *, and # | ||
| &ƵnĐƟŽn key | 4 ĨƵnĐƟŽn keys: project, panic, status, and bypass | ||
| Display | Screen | LED | |
| Application & protocol | Protocol | RS-485 | |
| Function | Function | Arming, disarming, alarm clearing, bypass, bypass restoring, partition control, control panel status query etc. |
|
| Others | Operation humidity | 10% to 90% (No condensing) | |
| Operation temperature | -10 °C to +55 °C (-4 °F to +122 °F) | ||
| Weight | 149g | ||
| Dimension | 133.9 mm (5.3″) x 74.9 mm (1.9″) x 27.7 mm (1.1″ ) | ||
