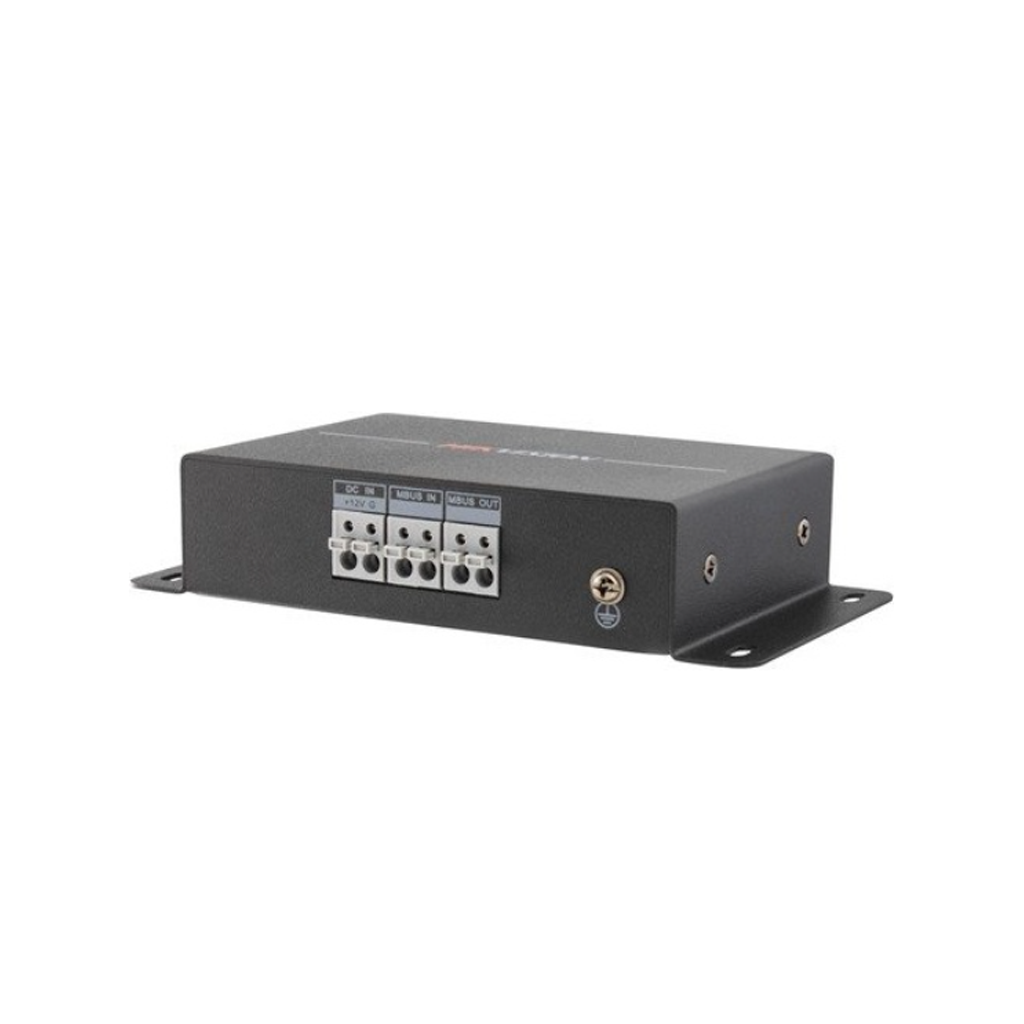

HIKVISION DS-PM-MR
MBUS Repeater
Features
- Power off both the module and control panel and set the DIP address on the module before installation
- DIP address: 1~253. (Different expanders can’t use same address)
- MBUS non-polarity
Specification
| Module Parameters | MBUS Repeater can work with multiplexing MBUS extension module |
Single Input Extension Module. Dual-Input Extension Module. 8-Input Extension Module. 4-ch Output Extension Module. Single Output Extension Module. 32-ch Output Extension Module. |
| Voltage | 12 VDC | |
| Current | Maximum 1.5A | |
| Working Temperature | -10℃ to +55℃ | |
| Working Humidity | 10% to 90% | |
| Cable Parameters | Cable maximum resistance | Rated value 29.04Ω，+20℃ |
| Cable transmission distance and cross-sectional area |
Transmission Distance:2400m ， Cross-sectional area: 1.5mm² |
|
| Transmission Distance:1600m, Cross-sectional area: 1.0mm² |
