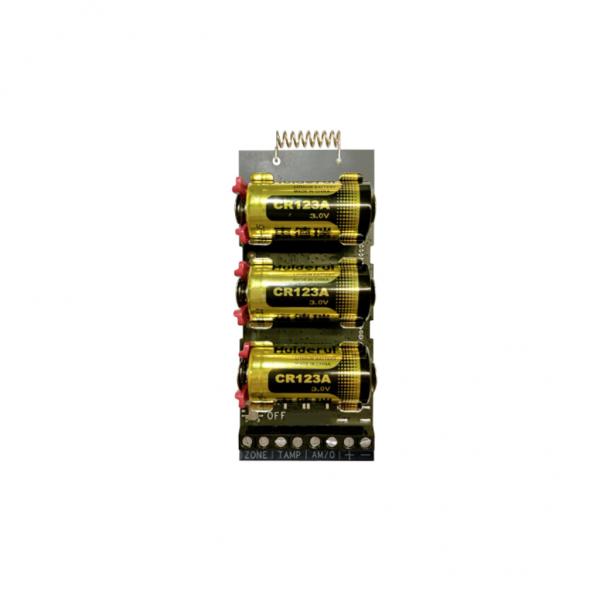

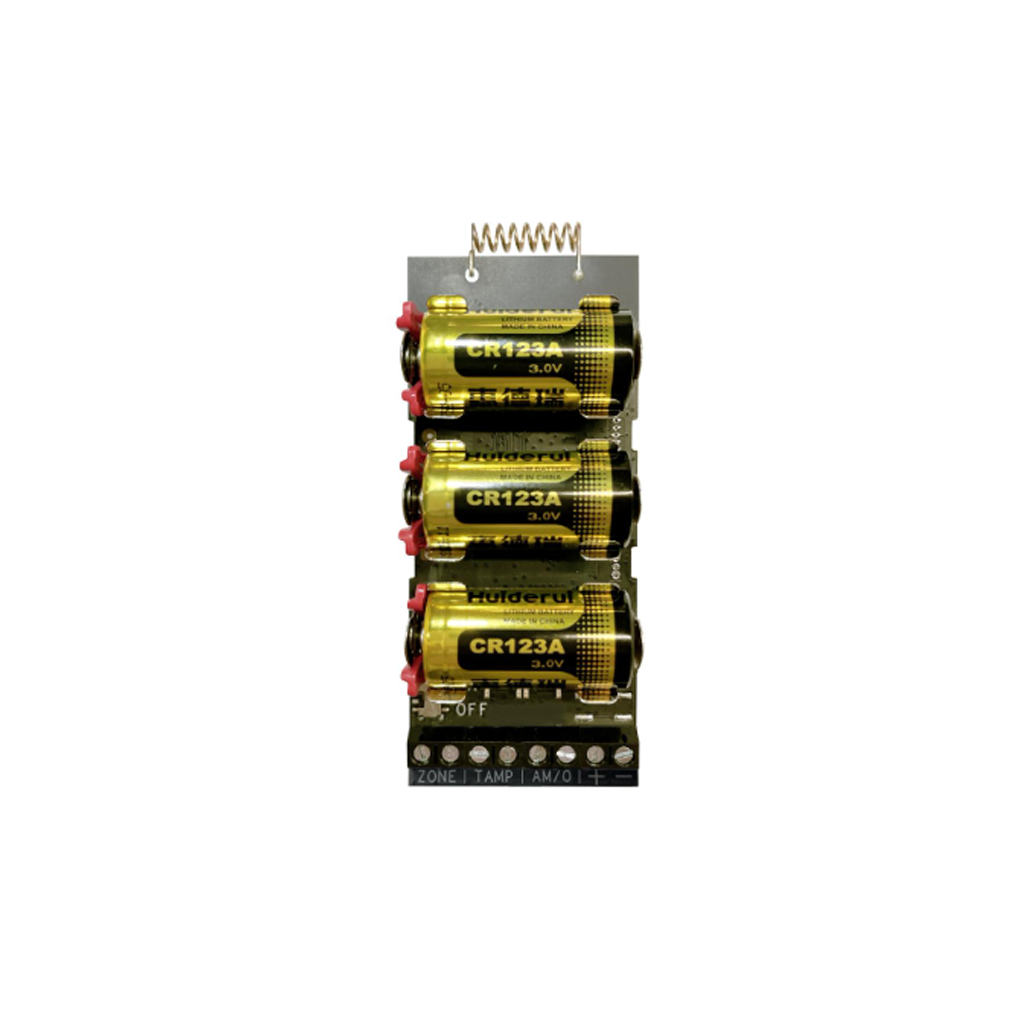

HIKVISION DS-PM1-I1-WE
Single Input Transmitter
Features
- Small size design, which can be put into wired detector easily
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With one tamper input and one PGM, can be used as zone input or alarm outpout
- With 3.3V voltage output, can be used to power up external wired detector
- Detection of device removal by accelerometer
Specification
| Model | DS-PM1-I1-WE | |
| Hardware features | Serial port | 1 |
| Power switch | 1 | |
| Alarm input | 1 Alarm, 1 Tamper | |
| Alarm output | 1 PGM, AM/Output | |
| 3.3v Output | 1, up to 10mA | |
| Electrical characteristics | Power supply | 3 CR123 |
| Operation humidity | 10%~90% | |
| Operation temperature | –10℃ ~ 55℃ | |
| Power consumption | Quiescent current: 40.29 uA Max current: 47.85mA Voltage: 3 VDC |
|
| Battery life span | More than 5 years (report alarm 50 times per day) | |
| Wireless transmission | RF frequency | 868MHz |
| RF method | Two-way communication | |
| RF modulation | 2GFSK | |
| RF distance | 1700m | |
| Display | Indicator | 3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red） |
| General | Installation method | Put inside Wireless Ready Detector |
| Dimension(WxHxD) | 102*41*20mm | |
| Weight | 35g(Without Battery), 90g(With Battery) | |
