DS-PS403I-WB

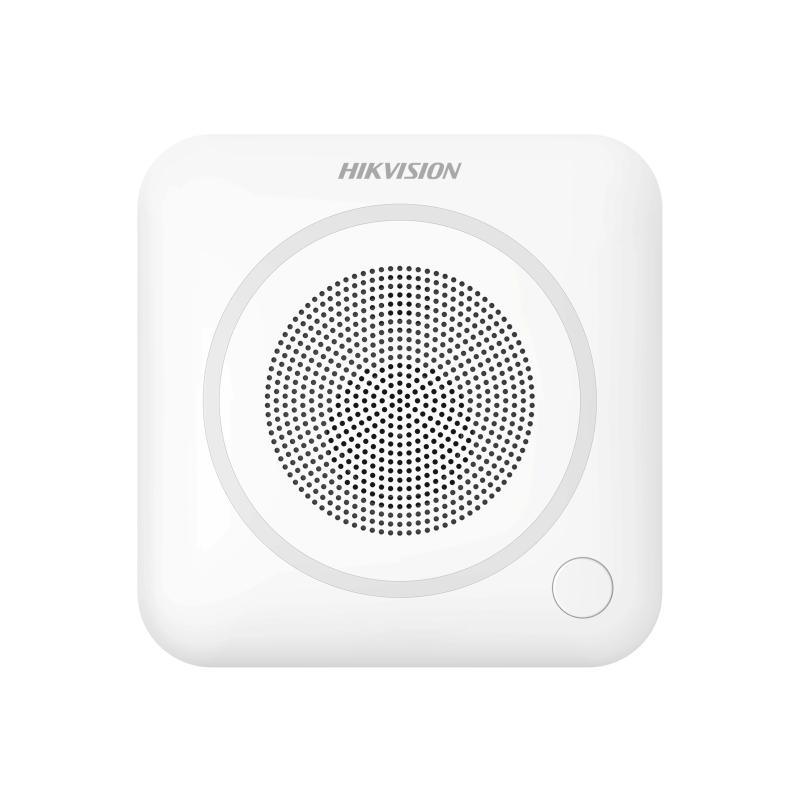

Wireless Indoor Intercom Sounder Plus
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Indication
- Voice promptSupported
- Indication methodAcoustic and LED
- Sound volume levelAdjustable Alarm: 105 dB max at a distance of 1 m Intercom: 85 dB max at a distance of 1 m
- Alarm durationAdjustable, 10 s−15 min
- Indication of armed/disarmed statusYes
- Hardware features
- Tamper-ProofSupported
- BuzzerSupported
- Power switchPower on/off
- MicSupported
- Display
- LED IndicatorEnrollment/Signal (red/green), Alarm(blue/red), Two-way audio service(blue/red)
- Audio
- IntercomTwo-way communication
- Electrical characteristics
- Operation humidity10% to 90% (no condensing)
- Operation temperature–10°C to 55°C
- Battery type4 × CR123A
- Power supplySupport 12 VDC power supply
- Power consumptionQuiescent current: 5 uA Max current: 1.6 A Voltage: 3 V
- Battery life spanUp to 4 years (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- RF frequency433 MHz
- RF modulation2GFSK
- RF distance800m (open area)
- Wireless technologyCAM-X Wireless Technology
- General
- Dimension(WxHxD)130 mm × 128 mm × 39.5 mm
- ColorWhite case (blue or red LED alarm)
- Installation methodWall-mounting
- 355 g
