描述

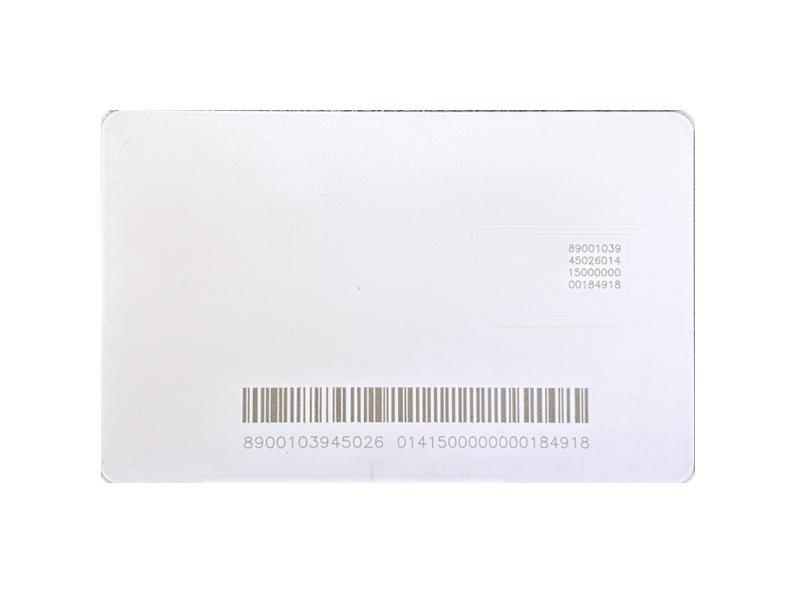

DS-PT072-S

SIM card

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Card parameters
Product standards compliance• ETSI TS 102 671 • ETSI TS 102 221 • RoHS: Restrictions of Hazardous Substances Directive • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals • GSMA SAS-UP • GSMA SAS-SM • ISO 10373-1 • ISO 7810 • ISO 7816
Data retention (RX = RC)10 Years @25°C
Endurance cycles (UX = UB) ETSI TS 102 221Integrated Circuit: Minimum 320,000 read/write cycles Kigen Operating System enhanced high endurance flash interface enables approximately 240 million chunk updates, which can be interpreted as 10 million+ updates for a specific file with a high update frequency
Operational and storage temperature (TX = TA) JESD22-A104-40℃ to 105℃
Corrosion (CX = CA) JEDEC22-A107BSalt atmosphere corrosion test: 24 hours
Electrical characteristicsOperating Voltage: 1.62V ~ 5.5V Operating External Frequency 1 ~ 10MHz (Class A/B), 1 ~ 7.5MHz (Class C) Operating External Frequency Max 28MHz
Technology2G/3G/4G/LTE/5G – according to the profile
Function•Internet traffic •Calls and Messages •10M default data
Cut2FF/3FF/4FF removable (Any cut, any combination)
Form factorFull ISO Size / Half ISO Size
