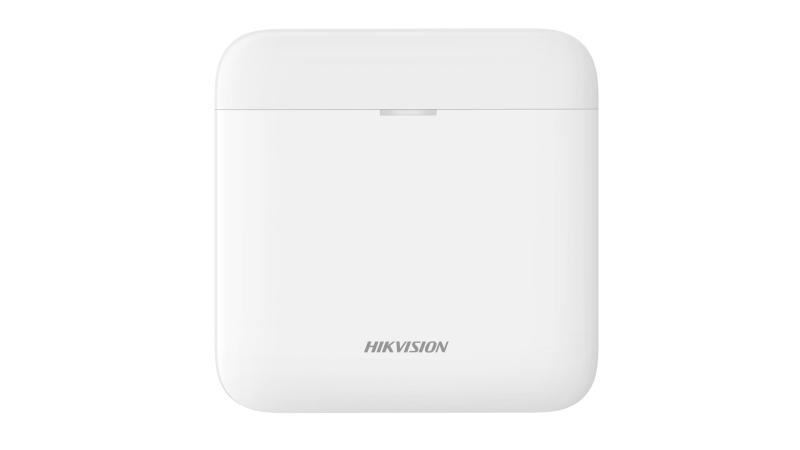

DS-PWA48-E-WB
AX PRO (433MHz)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Software features
- Tag 16
- Area 8
- Zones 48 (up to 48 PIRCAMs)
- Installer 1
- User 14
- Admin 1
- Voice Prompt Supported
- Loudspeaker built in Supported
- Memory Log stored 5000
- Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgrade APP/Web Portal
- Arm modes Away/Stay
- Automatic Arm/Disarm Timers Supported
- Forced Arming with Open Zones Supported
- Diagnostics via the APP or Web Supported
- ARC protocol SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
- User APP for operating Supported
- Installer APP for programming Supported
- Web server for maintenance (offline configuration) Supported
- Hardware features
- RS232 output Supported
- SIM slot N/A
- RF transmission
- RF Frequency 433 Mhz
- Wireless Security Supported
- GPRS on board N/A
- Display
- LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- Electrical characteristics
- Power supply Built in power supply
- Battery type Built in on board Battery Li
- Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- Wired network Supported
- Wi-Fi Standard Supported
- General
- Operation temperature -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
- Shell material Plastic
- Dimension(WxHxD) 170.0 mm (6.7″) × 170.0 (6.7″) mm × 38.6 mm (1.5″)
- 557.5 g (19.7 oz)
- Color White
- Device management
- Keyfob 16
- Wireless sounder 4
- Keypad 8 (including tag reader)
- Wireless Repeater 2
- Multi Transmitter 3
- PIR Cam Supported
