DS-PWA96-Kit2-WE

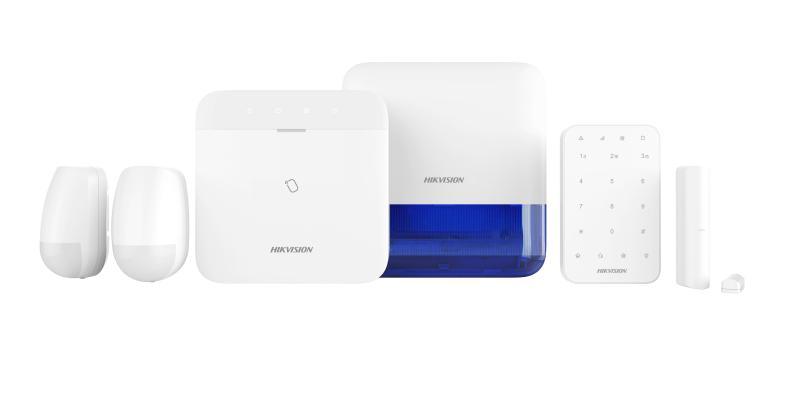

AX PRO Kit (868MHz)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Software features
- Tag48
- Area32
- Zones96 (up to 48 PIRCAMs)
- Onboard video clips4
- Installer1
- User46
- Admin1
- Voice PromptSupported
- Loudspeaker built inSupported
- Tag reader built inSupported
- Memory Log stored5000
- Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgradeAPP/Web Portal
- Arm modesAway/Stay
- Automatic Arm/Disarm TimersSupported
- Forced Arming with Open ZonesSupported
- Diagnostics via the APP or WebSupported
- ARC protocolSIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
- User APP for operatingSupported
- Installer APP for programmingSupported
- Web server for maintenance (offline configuration)Supported
- Hardware features
- RS232 outputSupported
- SIM slotDual
- RF transmission
- Two-way Wireless CommunicationSupport
- RF Frequency868Mhz
- Wireless SecurityFrequency Hoping 128 AES Encryption
- 3/4G on boardSupported
- Display
- LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- Electrical characteristics
- Power supplyBuilt in power supply
- Battery typeBuilt in on board Battery Li
- Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- Wired networkSupported
- Wi-Fi StandardSupported
- General
- Operation temperature-10 °C to +55 °C
- Shell materialPlastic
- Dimension(WxHxD)170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
- 557.5 g(19.7 oz)
- Colorwhite
- Device management
- Keyfob48
- Wireless sounder6 (3 internal+3 External)
- Keypad8 (Including Tag reader)
- Wireless Repeater4
- Multi Transmitter6
- PIR CamSupported
