DS-QAE0130G1

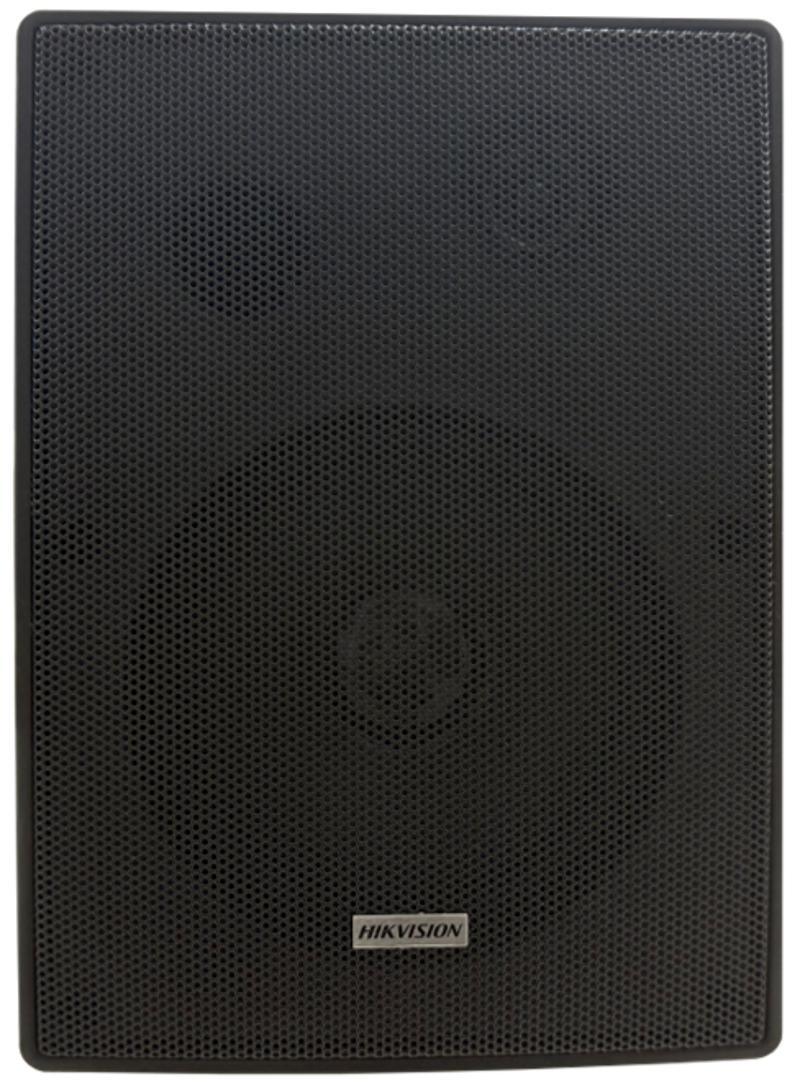

Analog Cabinet Speaker 30W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Impedance8 Ω
- Frequency Response70Hz to 19kHz(-6dB）
- Maximum Sound Pressure Level105dB
- Rated Power30W
- Sensitivity(1 m, 1 W)91dB
- Speaker Unit5″ bass × 1 / 25mm voice coil Magnetic steel size: 80*15mm 3-inch panel-less tweeter with 13 cores
- Interface
- Audio InConstant voltage input: 100V Constant impedance input: 8 Ω
- General
- MaterialABS
- Dimension180(W)x240(H)x165D)mm
- Approx. 2477g
- Packing ListDevice × 1, Multilingual Manual× 1
- Operating Temperature-10 °C to 40 °C（±2）
- Operating Humidity20%~80%
