描述
DS-QAE0206G1-V

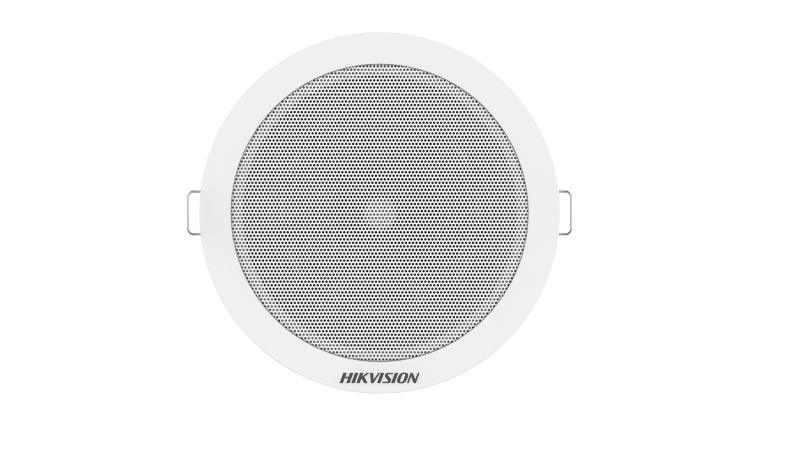

Analog Ceiling Speaker 6W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Impedance8 Ω
- Speaker Unit5.25′′ × 1
- Coverage AngleConical Coverage: 95°
- Audio
- Rated Power6 W
- Sensitivity91 dB ± 3 dB
- Max. Acoustic Pressure98 dB
- Frequency Response90 Hz to 20 kHz
- Interface
- Audio InRated voltage，100 V
- General
- MaterialShell: ABS; Mesh enclosure: iron mesh
- Operating Condition-20 °C~50 °C (-4 °F to 122 °F ), humidity: 95% or less
- DimensionØ170 × 64 mm (Ø6.69″ × 2.52″)
- Package Dimension173.5 × 173.5 × 67 mm (6.83″ × 6.83″ × 2.64″)
- Approx. 468.5 g (1.03 lb.)
- With Package WeightApprox. 534 g (1.18 lb.)
- Packing ListDevice × 1 Regulatory Compliance and Safety Information × 1
- Mounting Hole DimensionØ148 mm (Ø5.83″)
