描述
DS-QAE0215G1-V

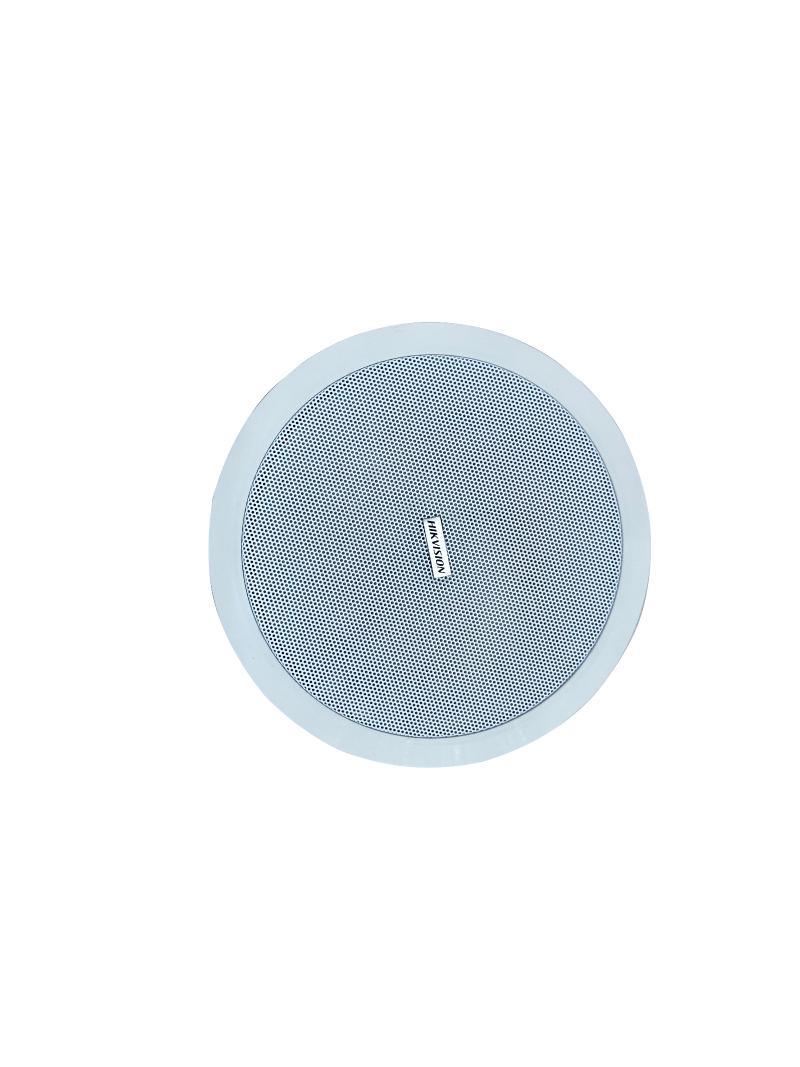

Analog Ceiling Speaker 15W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Impedance8 Ω
- Speaker Unit5′′ × 1
- Rated Power15W
- Sensitivity(1 m, 1 W)93 dB ± 3 dB
- Maximum Sound Pressure Level106dB
- Frequency Response70Hz to 18KHz
- Interface
- Audio InRated voltage，100 V
- General
- MaterialShell: ABS; Mesh enclosure: iron mesh
- DimensionØ186 × 80 mm(Ø7.32″ × 3.15″)
- Package Dimension204x203x90mm(8.03″ × 7.99″ × 3.54″)
- Approx. 803 g (1.77 lb.)
- With Package WeightApprox. 980 g (2.16lb.)
- Packing ListDevice × 1 Quick Start Guidex1
- Operating Temperature‘-20 °C~50 °C (-4 °F to 122 °F )
- Operating Humidity＜95%
- Mounting Hole DimensionØ163mm(Ø6.41″)
