描述
DS-QAE0330G1T-V

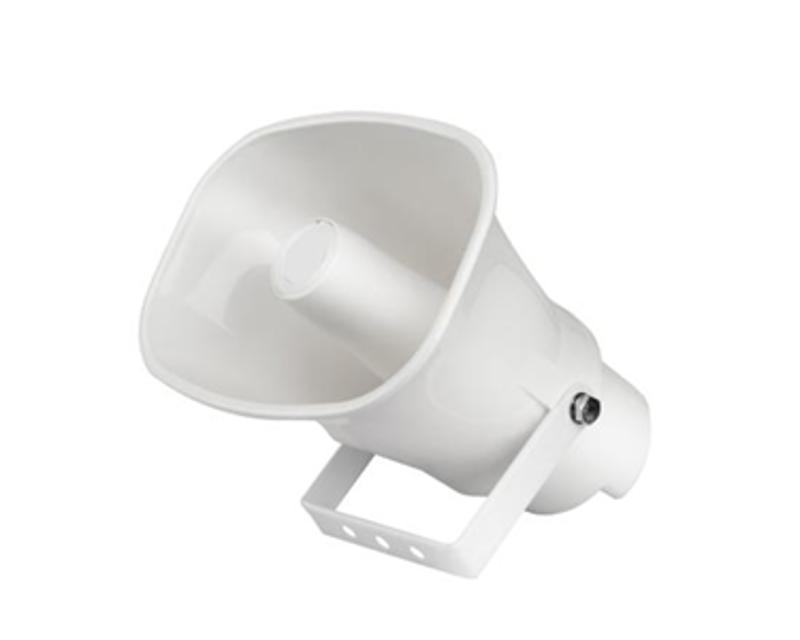

Analog Horn Speaker 30W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Rated Power70V：2.5W/5W/7.5W/15W/30W； 100V: 5W/10W/15W/30W
- Max. Acoustic Pressure120 dBSPL
- Sensitivity(1 m, 1 W)108dB±3dB
- Frequency Response250 Hz-8 kHz
- Speaker Unit34-core 2-inch mid-to-high (dome resin film)
- Coverage AngleHorizontal: 75° Vertical: 90°
- General
- MaterialABS
- Operating Temperature-20 °C to 55 °C
- Operating Humidity＜90% (No condensation)
- Dimension240mm × 220 mm × 165 mm
- Approx. 1.48 kg
- ColorWhite
- With Package WeightApprox. 2.05 kg
- Packing ListInstructions × 1 Regulatory Compliance and Safety Information × 1
- Approval
- ProtectionIP65
