描述
DS-QAE0A120G1-VB6

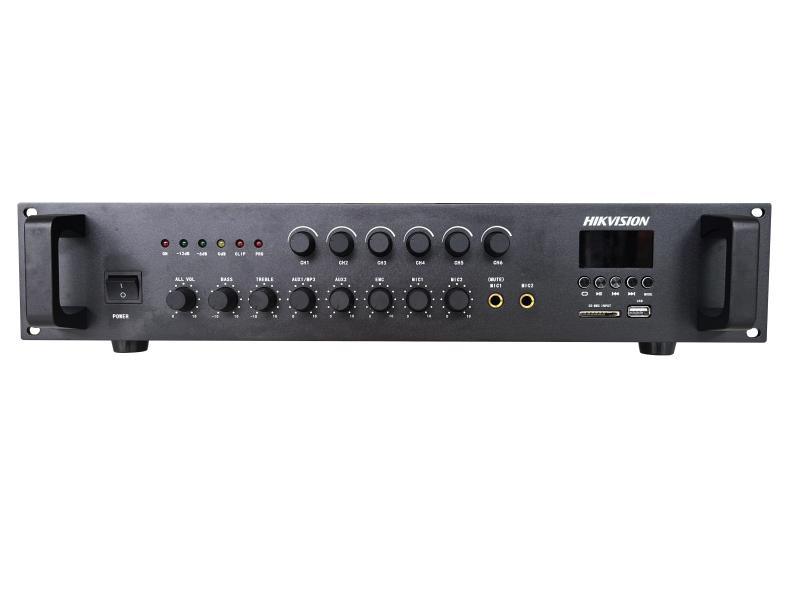

120W 6-Zone Analog Amplifier
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Rated Power120W
- SensitivityLine: -10dB EMC: -10dB MIC: -40dB line：0dB
- Frequency Response80Hz-18KHz（±3dB）
- THD and SNRTHD≤0.5% SNR≥83dB
- Interface
- Audio InEMC IN × 1, 6.5 mm Microphone × 2, AUX IN × 2, Bluetooth, USB2.0, SD card
- Audio OutConstant Voltage Output × 1，110 V COM, Constant Voltage Output × 1，70 V COM, Constant Impedance Output × 1，4~16Ω COM, Partition Output × 6，110 V COM, line out × 1,
- Volume KnobMIC Volume Knob × 2， Partition 1 Volume Knob × 6， All Volume Knob × 1， Bass Volume Knob × 1， Treble Volume Knob ×1， AUX1/MP3 Volume Knob ×1, AUX2 Volume Knob ×1, EMC Volume Knob ×1
- USBUSB2.0
- General
- Power200V-230V～, 50/60Hz 5A
- MaterialIron
- Dimension484 × 88 × 360 mm
- Approx. 9.2 kg (20.28 lb.)
- Package Dimension540 x 165 x 450 mm
- With Package WeightApprox. 9.5 Kg(20.94 lb.)
- ColorBlack
- Packing ListOne machine and one power cord
- Operating Temperature-10~+ 40°C ,（±2） 20%~80% relative humidity
- InstallationCabinet installation
- Whole Device Dimension484 x 88 x 395 mm (including handle)
