DS-QAE0A360G1-V6/EN

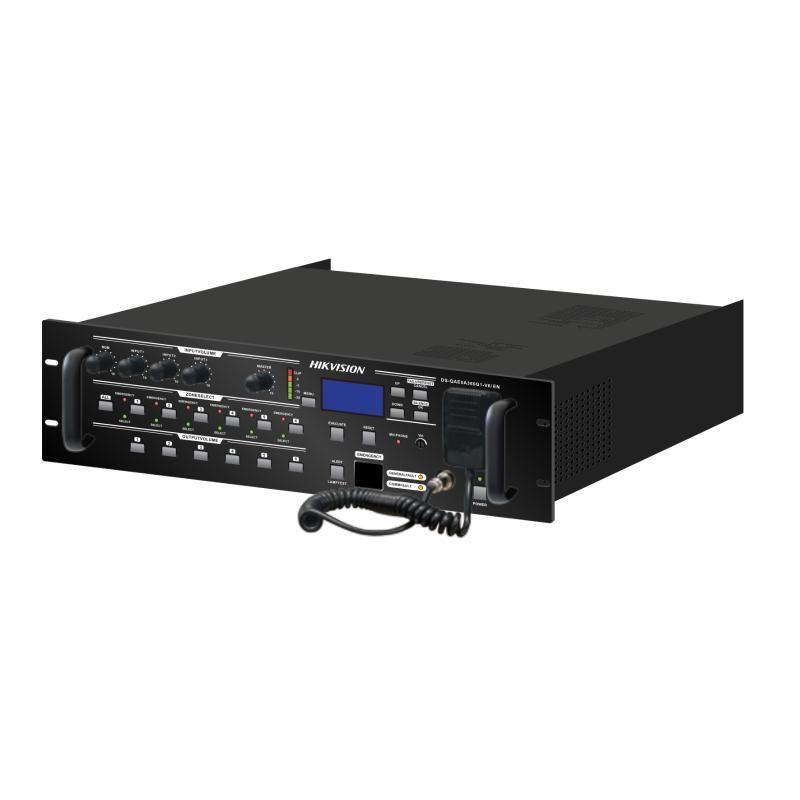

360W 6-Zone EVAC Amplifier
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Frequency Response50 Hz-16 KHz,+/-3 dB
- THD and SNRTHD: ≤0.7% (1KHz) SNR: ≥85 dB
- Audio Input1.Input 1-3:-50dBx(MIC)/-10dB x(LINE) 2. 600ΩBGM 1-2:10dBx10KΩ
- Audio OutputThe total output power applied on CH1-6 no more than 360W, The MAX Mono output power =180W .
- Remote Control PortConnected to the DS-QAE0MP0G1/EN EVAC Paging Microphone and DS-QAE0MP0G2/EN Remote Paging Microphone. The distance between the unit and paging microphone can reach 100 meters, recommended to use (CAT5E-FTP).
- Backup ConnectionConnected to DS-QAE0A360G1-V6/ENB backup amplifier, Recommended to use CAT5E-STP.
- Extension PortTotal 6 ports which can be used to connect with the device DS-QAE0A360G1-V6/ENEX / DS-QAE0A150G1-V/ EN/300G1-V/EN/450G1-V/EN.
- Emergency Control Input2-way input, Available to connect with the fire center and process message control.
- General Emergency ControlInput 1-6: No-voltage contact input, short-circuit current below 2mA Output 1-6: operation current: 10mA below.
- External Volume Intrusion Control6 ways of DC outputs, the voltage used to connect with the device which can be forcibly switched
- BGM1/22 sets of lotus connectors, External audio source analog signal input.
- Common Control Input6 groups of terminal ports; Switching quantity signal input; None-voltage contace input; Short-circuit current below 2mA.
- Common Control Output6 groups of terminal ports; Switching quantity signal output (relay isolation); Operating current less than 10mA.
- Remote Control Device Port2 RJ45 ports used to connect with remote emergency microphone (DS-QAE0MP0G1/EN).
- Backup Output1 RJ45 port used to connect with DS-QAE0A360G1-V6/ENB backup amplifier.Recommended to use (CAT5E-STP)
- Backup Power Status Input1 RJ45 port used to the switching-quantity signal based on backup power status.
- Voice Message1 Type-B port used to connect with PC to place the voice files, only support MP3 format.
- Monitor2 lotus connector used to output all audio analog signal from the host.
- Zone Expansion6 ways of RJ45 ports. Connected to the multiple-zone expansion: DS-QAE0A360G1-V6/ENEX/ Single-zone expansion AMP: DS-QAE0A150G1-V/EN/300G1-V/EN/450G1-V/EN
- LT PortLT1 and LT2 used to connect/communicate with signal collector (DS-QASIGNAL/EN). LT3 used to connect with fire controller.
- Network Control PortRJ45, 1000M bandwith. Used to connect with PC software to upgrade firmware or control system configuration.
- General
- Power220-240VAC, 50/60 Hz ,360 W
- Dimension440x402x130 mm
- 17 kg
- Packing ListExtension Amplifier x1; Instructions x3; Power Line x1; Terminal 7pin x4; Terminal 2pin x3;
- Operating Temperature-5 °C-+45 °C
- Power Consumption1100 W MAX
