DS-QAE0A450G1-V/EN

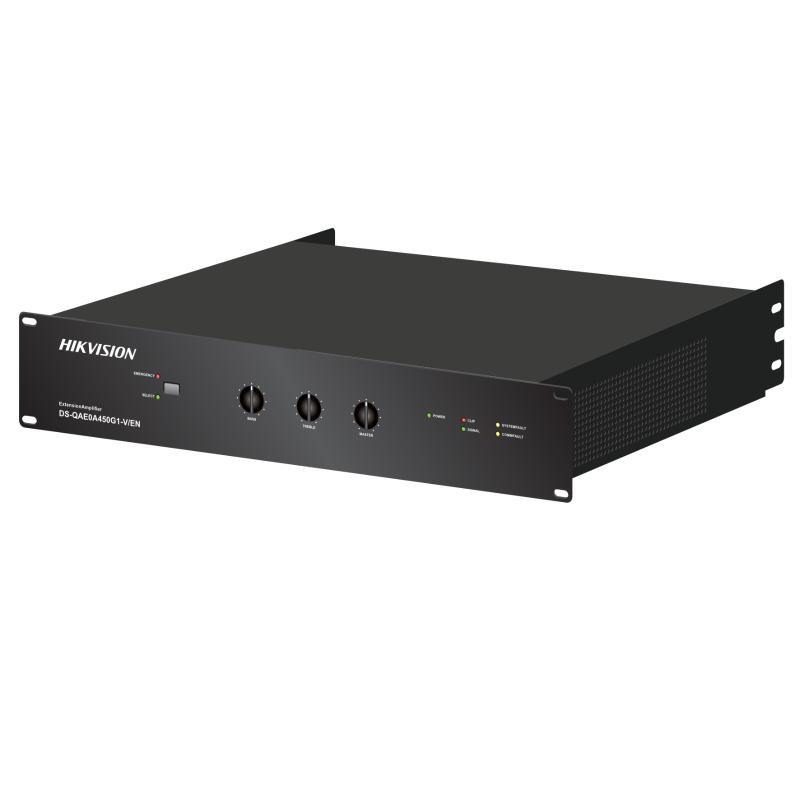

450W EVAC Amplifier

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Audio
Frequency Response100 Hz-15 KHz, ±3 dB
THD and SNRTHD: ≤2% (1KHz) SNR: ≥65 dB
Audio Input1.-50dBx(MIC)/-10dB x(LINE) 2. 600ΩBGM 1-2:10dBx10KΩ
Audio Output2 PIN screw terminal used to connect with speaker to output amplifier signals (the max output power=450W).
Backup AMP Connection1 RJ45 port used to receive the signal from backup amplifier or connect with device DS-QAE0A450G1-V/ENB.
Input Control2 groups of terminal blocks used to input external control signal (related voltage 12V) or control external short-circuit.
Backup Amp Input2 PIN screw terminal used to connect with device DS-QAE0A450G1-V/ENB to receive signals from backup amplifier.
Main Control Input1 RJ45 port used to connect with device DS-QAE0A360G1-V6 for audio input or or communication. The cable (CAT5E-STP) recommended.
Main Control Link1 RJ45 port used to connect with below devices for audio output or communication. DS-QAE0A150G1-V/EN / DS-QAE0A300G1-V/EN / DS-QAE0A450G1-V/EN
