描述

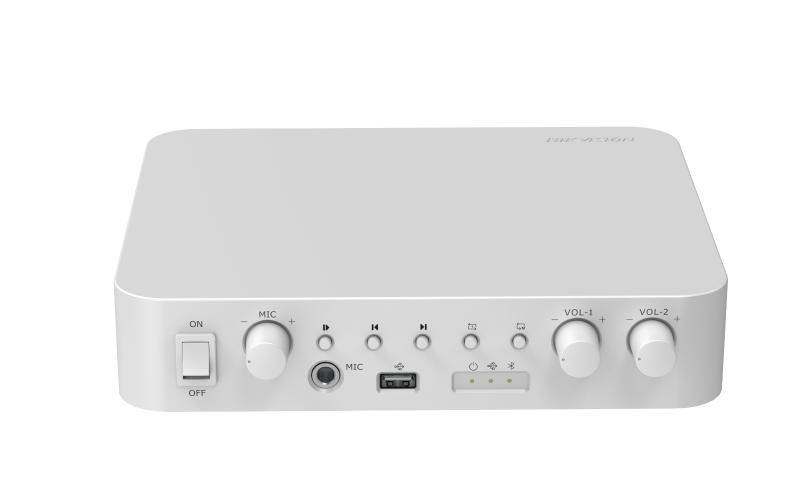

DS-QAE0A60G1-VB
Analog Amplifier 60W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Function
- Protection Functionshort circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
- Audio
- Rated Power60 W 24 VDC
- Frequency ResponseUSB, Bluetooth: 20 Hz to 20 kHz MIC, RCA Input: 20 Hz to 8 kHz
- THD and SNRTHD: ≤1% SNR: ≥100 dB
- Interface
- Audio InMIC 1: -28 dBV, 2.57 KΩ, unbalanced, 6.35 mm jack, supports dynamic microphone connection USB 2.0 × 1 RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack Bluetooth
- Audio OutConstant Voltage Output × 2，100 V COM Constant Resistance Output × 2，30 W 4 Ω to 8 Ω RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack RCA Cascading: support a cascade of up to 3 amplifiers Bluetooth
- LED IndicatorPower indicator (solid white): the device is normally working USB flash drive indicator (solid white): the device is in USB mode Bluetooth indicator (solid blue): the device is in Bluetooth mode USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed
- Volume KnobMIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
- USBUSB 2.0 File format: FAT32 USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.
- Power InterfaceAperture size: Ø2.0 mm
- General
- MaterialPlastic
- Dimension190.8 mm × 230.8 mm × 51.2 mm (7.48″ × 9.06″ × 2.01″)
- Package Dimension362 mm × 280 mm × 100 mm (14.25″ × 11.02″ × 3.94″)
- Approx. 1445.5 g (3.19 lb.)
- With Package WeightApprox. 2113.3 g (4.66 lb.)
- ColorWhite
- Packing ListDevice × 1 Power Adapter × 1 Power Cord × 1 Regulatory Compliance and Safety Information × 1
- BluetoothBluetooth 5.3，10 m
- Operating Temperature-10 °C to 55 °C(14 °F to 131 °F)
- Operating Humidity＜90% (No condensation)
- Power ConsumptionStandby Consumption: 1 W Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
