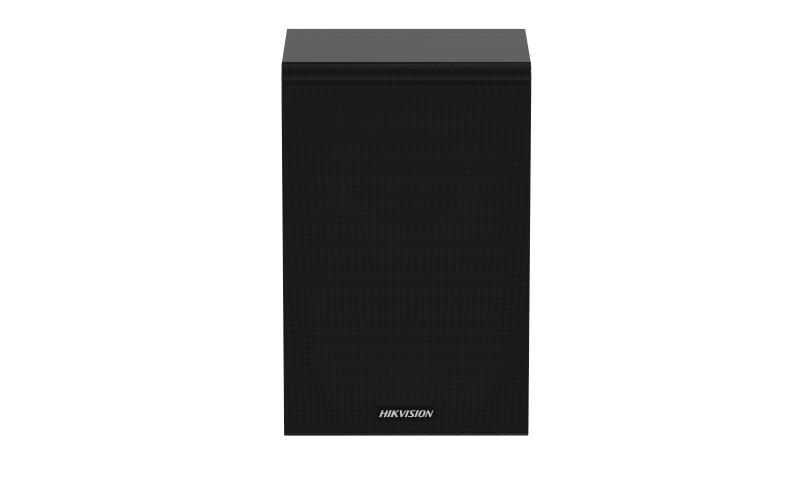

DS-QAZ0110G1-S
Cabinet Secondary Speaker 10W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Rated Power10 W
- Impedance8 Ω
- Sensitivity(1 m, 1 W)90 dB
- DirectionAll directions
- Max. Acoustic Pressure98 dBSPL
- Frequency Response100 Hz to 20 kHz
- Coverage AngleHorizontal: 105° Vertical: 103°
- Interface
- Audio InFixed resistance input × 1，8 Ω
- General
- MaterialWooden
- Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
- Operating Humidity＜90% (No condensation)
- Dimension180.6 mm × 156 mm × 280 mm(7.11″ × 6.14″ × 11.02″)
- Package Dimension355 mm × 265 mm × 240 mm(13.98″ × 10.43″ × 9.45″)
- Approx. 1.9 kg (4.19 lb.)
- ColorBlack
- With Package WeightApprox. 2.68 kg (4.91 lb.)
- Packing ListDevice × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1
