描述
DS-QAZ0510G1/EN

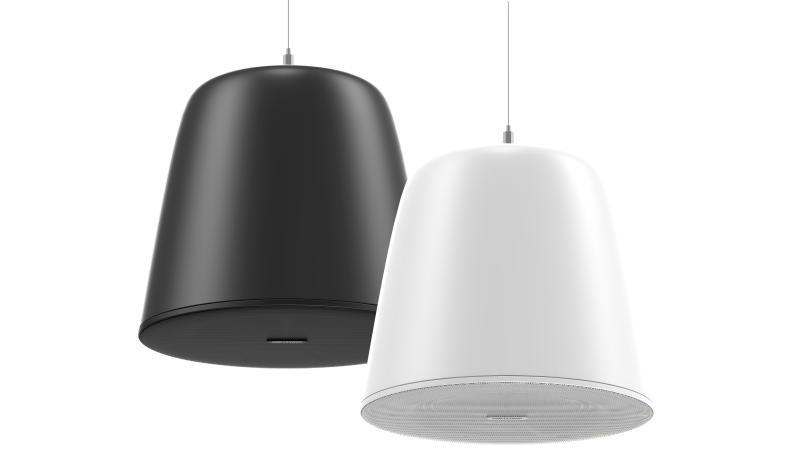

Analog Pendant Speaker 10W EN54
DS-QAZ0510G1/EN 屬海康威視廣播及音響產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像及音響工程。規格以原廠資料為準。
規格
Speaker
| Impedance | 8Ω |
|---|---|
| Rated Power | 10W |
| Total Harmonic Distortion (THD) | ≤1% |
| Sensitivity(1 m, 1 W) | 89dB |
| Max. Acoustic Pressure | 98dB |
| Frequency Response | 120Hz~20kHz(-10dB) |
| Speaker Unit | 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer |
| Coverage Angle | Conical Coverage: 88° |
Interface
| Audio In | Constant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input: 8 Ω |
|---|---|
| Voltage Input | 100V: 10W、5W、2.5W 70V：10W、5W、2.5W、1.25W 8Ω |
General
| Material | Main body: PC Base: ABS |
|---|---|
| Language | 5 languages: English, French, Spanish, German, Italian |
| Package Dimension | 305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4") |
| With Package Weight | Approx. 2.9 kg (6.49 lb.) |
| Packing List | Device × 1 Regulatory Compliance and Safety Information × 1 |
| Operating Temperature | -10 °C to 45 °C |
| Operating Humidity | ＜90% (No condensation) |
