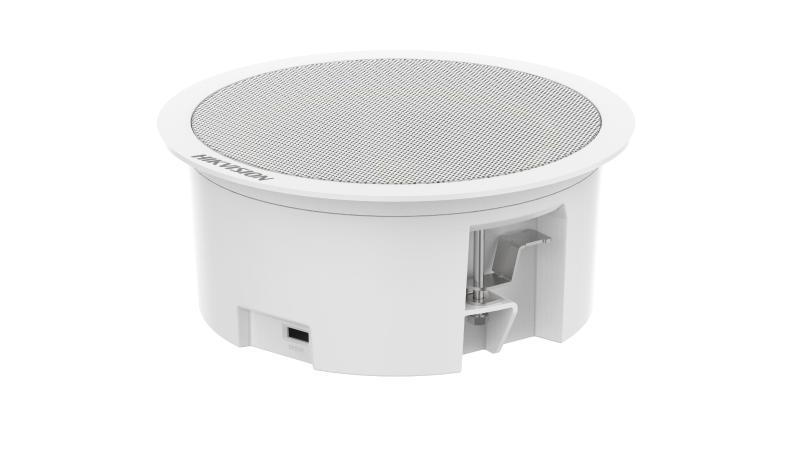

DS-QAZ1206G1-BE
Network Ceiling Speaker 6W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Speaker
- Rated Power6 W
- Impedance8 Ω
- Max. Acoustic Pressure100 dBSPL
- Sensitivity(1 m, 1 W)93 dB
- Direction All directions
- Frequency Response300 Hz to 15 kHz
- SNR82 dB
- Speaker UnitFull frequency 5′′ × 1
- Coverage AngleConical Coverage: 130°
- Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
- Audio File FormatMP3, WAV
- NTP TimingSupport
- Broadcast Regular broadcast, live broadcast, emergency broadcast
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API) ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Functions
- Audio FunctionSupport digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
- Communication
- Communication Method Support wired network and bluetoothcommunication
- Audio
- Number of Sub SpeakerPoE+（802.3at） 25W: support 1* 6W sub speakers 12 V, 1.5 A, max. 18W: support 1* 6W sub speakers
- Sub Speaker Connection MethodImpedance Input
- Interface
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- API ISAPI, ISUP, SIP,ONVIF
- AlarmAlarm input × 2
- Audio In3.5 mm audio interface × 1
- Audio Outfixed resistance output × 1，phoenix terminal，8 Ω *The primary speaker(6 W, 8 Ω) can be connected to a maximum of 1 secondary speaker(6 W, 8 Ω).
- General
- PowerPoE: 802.3at，12 VDC/1.5 A
- MaterialDevice body: plastic; Mesh cover: metal
- Mounting Hole DimensionØ160 mm (6.30″)
- Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- DimensionØ179 mm × 73.5 mm (Ø7.05″ × 2.89″) (Hole size: 160 mm）
- Package Dimension255 mm × 243 mm × 175 mm (10.04″ × 9.57″ × 6.89″)
- Approx. 0.3 kg (0.66 lb.)
- With Package WeightApprox. 0.5 kg (1.1 lb.)
- ColorWhite
- Packing ListDevice × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1
- BluetoothBluetooth 5.0, 10 m
- Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
- Operating Humidity＜90% (No condensation)
- Mounting Depth127 mm (5″)
- Approval
- RFCE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
