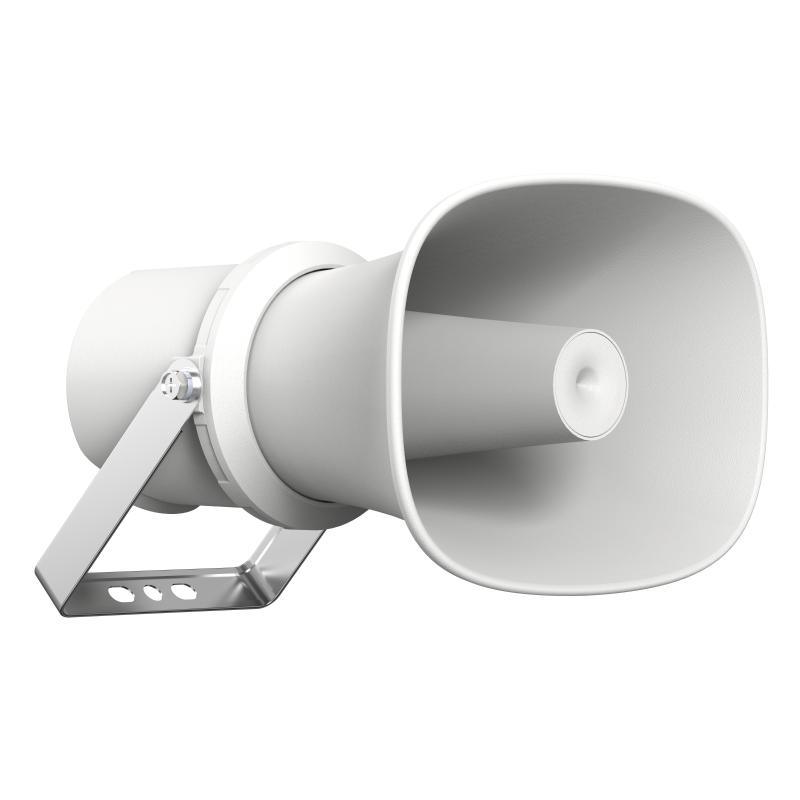

DS-QAZ1325G1T-EY
Network Anti-corrosion 25W Horn Speaker
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Microphone
- Typeelectret
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16-bit
- Speaker
- Impedance8 Ω
- Rated Power25W
- Sensitivity(1 m, 1 W)110 dB
- Direction70° horizontal by 100° vertical
- Max. Acoustic Pressure124 dBSPL
- Frequency Response300 Hz to 8 kHz
- SNR83 dB
- Function
- Audio AlgorithmAEC, AGC, ANS, DRC
- Audio Bit RateG.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps)
- Audio File FormatWAV, MP3
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP,SSH
- Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network communication
- Interface
- AlarmAlarm input ×1
- AudioLine in × 1
- Power Output12 VDC, 25 mA（max） PoE: max. 25 W
- Network InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 2
- Local StorageBuilt-in 64 GB EMMC (Audio file storage is 55 GB.)
- APIISAPI, ISUP, SIP,ONVIF
- ResetSupport
- General
- Power24 VDC, 1167 mA, 28 W, PoE: IEEE 802.3bt, Class 4
- MaterialMetal
- Language9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
- Dimension240 mm × 183 mm × 297 mm (9.43″ × 7.18″ × 11.7″)
- Package Dimension310 mm × 245 mm × 400 mm (12.2″ × 9.6″ × 15.75″)
- 2.860kg
- With Package Weight4.490kg
- ColorWhite
- Packing ListDevice × 1 Instructions × 1 Power adapter x 1 AC power cable x 1 Threading cap × 1 Regulatory Compliance and Safety Information × 1
- Operating Temperature-40 °C to 60 °C(-40 °F to 140 °F)
- Operating Humidity＜90% (No condensation)
- Approval
- ProtectionIP67 IK10
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
