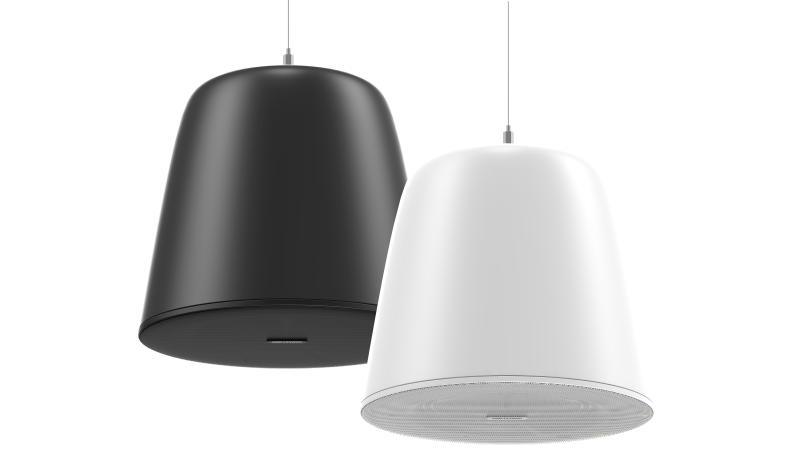

DS-QAZ1506G1-BE
Network Pendant Speaker PoE 6W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Protocol
- Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
- Microphone
- Type MEMS
- Amount 2
- Frequency Response 100 Hz to 10 kHz
- Sensitivity -38dBV/Pa
- Speaker
- Impedance 8Ω
- Rated Power 6W
- Total Harmonic Distortion (THD) ≤1%
- Sensitivity(1 m, 1 W) 88dB
- Max. Acoustic Pressure 94dB
- Frequency Response 140Hz~15kHz(-10dB)
- Speaker Unit Full frequency: 6.5″ × 1
- Coverage Angle Conical Coverage: 88°
- Function
- Audio Algorithm AEC、AGC、ANS、DRC
- Audio Bit Rate G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
- Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Client Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Interface
- Alarm Alarm in
- Network Interface RJ45 10 M/100 M Adaptive Ethernet port × 1
- Local Storage Built-in 64 GB EMMC (Audio file storage is 55 GB.)
- Audio In 3.5 mm audio interface × 1
- LED Indicator Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
- Reset Support
- General
- Power DC 24 V, 5 A, max. 60 W; IEEE 802.3 bt(Hi PoE);IEEE 802.3 af(PoE);IEEE 802.3 at(PoE)
- Material Main body: PC Base: ABS
- Dimension φ242.78mm X 192.7mm
- Approx. 2.7 kg (5.95 lb.)
- Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- Package Dimension 305mm×305mm×315mm
- With Package Weight Approx. 2.9 kg (6.49 lb.)
- Packing List Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1 hanging rope 2080mm ×1
- Bluetooth Bluetooth 5.0, 10 m
- Operating Temperature -10 °C to 45 °C
- Operating Humidity ＜90% (No condensation)
