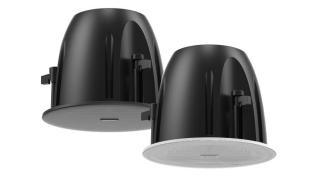

DS-QAZ1610G1-BE(B)
Network Frameless Ceiling Speaker PoE 10W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Protocol
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
- Microphone
- TypeMEMS
- Amount2
- Frequency Response100 Hz to 10 kHz
- Sensitivity-38dBV/Pa
- Speaker
- Impedance8Ω
- Rated Power10W
- Total Harmonic Distortion (THD)≤1%
- Sensitivity(1 m, 1 W)89dB
- Maximum Sound Pressure Level98dB
- Frequency Response120Hz~20kHz(-10dB)
- Speaker Unit1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
- Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
- Audio
- Number of Sub SpeakerHi-PoE/PoE++ (802.3bt) 60W: support 2* 10W sub speakers Hi-PoE/PoE++ (802.3bt) 90W: support 3* 10W sub speakers PoE midspan injector 60W: support 2* 10W sub speakers PoE midspan injector 75W: support 2* 10W sub speakers 24 V, 5 A, max. 60 W: support 3* 10W sub speakers
- Sub Speaker Connection MethodVoltage Input
- Interface
- AlarmAlarm in
- Network InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- Local StorageBuilt-in 64 GB EMMC (Audio file storage is 55 GB.)
- Audio In3.5 mm audio interface × 1
- LED IndicatorSolid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
- ResetSupport
- General
- Power24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
- MaterialMain body: PC Base: ABS
- Mounting Hole DimensionØ225 mm (8.86″)
- DimensionØ242.78 mm × 192.7 mm (9.56″ × 7.59″)
- Approx. 2.7 kg (5.95 lb.)
- Language5 languages: English, French, Spanish, German, Italian
- Package Dimension305 mm × 305 mm × 315 mm (12.01″ × 12.01″ × 12.4″)
- With Package WeightApprox. 2.9 kg (6.49 lb.)
- Packing ListDevice × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
- BluetoothBluetooth 5.0, 10 m
- Operating Temperature-10 °C to 45 °C
- Operating Humidity＜90% (No condensation)
- Mounting Depth240 mm (9.45″)
