DS-QAZ1630G1-BE

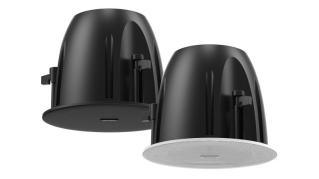

Network Frameless Ceiling Speaker PoE 30W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Protocol
- Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
- Microphone
- Type MEMS
- Amount 2
- Frequency Response 100 Hz to 10 kHz
- Sensitivity -38dBV/Pa
- Speaker
- Impedance 8Ω
- Rated Power 30W
- Total Harmonic Distortion (THD) ≤1%
- Sensitivity(1 m, 1 W) 92dB
- Max. Acoustic Pressure 104dB
- Frequency Response 80Hz~20kHz(-10dB)
- Speaker Unit 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
- Coverage Angle Conical Coverage: 90°
- Function
- Audio Algorithm AEC、AGC、ANS、DRC
- Audio Bit Rate G.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps） Sampling bit width: 16 bits
- Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Interface
- Alarm Alarm in
- Network Interface RJ45 10 M/100 M Adaptive Ethernet port × 1
- Local Storage Built-in 64 GB EMMC (Audio file storage is 55 GB.)
- Audio In 3.5 mm audio interface × 1
- LED Indicator Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading
- Reset Support
- General
- Power 24 VDC ± 10%, 2.5 A, max. 60 W, PoE: 50 V to 57 V, 0 A to 1.6 A, max. 71 W
- Material Main body: PC Base: ABS
- Mounting Hole Dimension Ø270 mm (10.63″)
- Dimension Ø286.74 mm × 213.6 mm (11.29″ × 8.41″)
- Approx. 2.7 kg (5.95 lb.)
- Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- Package Dimension 350 mm × 350 mm × 343 mm (13.78″ × 13.78″ × 13.5″)
- With Package Weight Approx. 2.9 kg (6.49 lb.)
- Packing List Device × 1 Regulatory Compliance and Safety Information × 1 2-pin phoenix connector × 1 4-pin phoenix connector ×1
- Bluetooth Bluetooth 5.0, 10 m
- Operating Temperature -10 °C to 45 °C
- Operating Humidity ＜90% (No condensation)
