描述

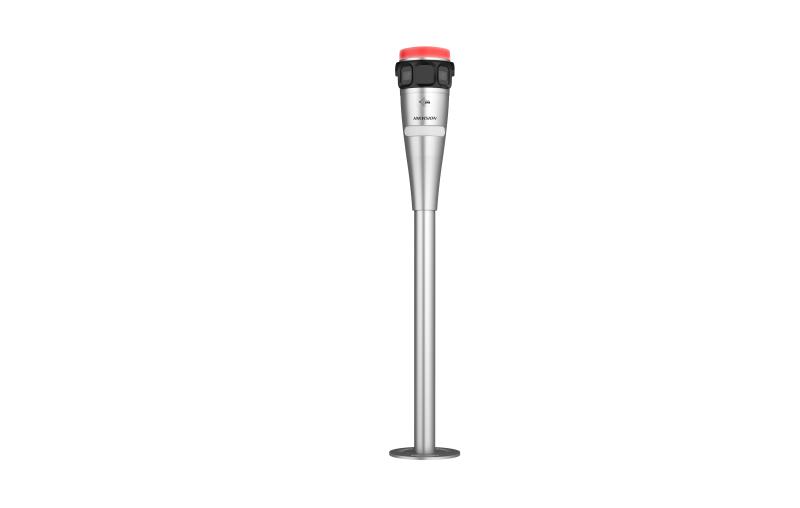

DS-TCL500-G
5MP On-Street ANPR pole
DS-TCL500-G 屬海康威視停車場管理產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考停車場管理系統。規格以原廠資料為準。
規格
Lens
| Lens Type | 2.8mm |
|---|---|
| Focus | Fixed |
Supplement Light
| Supplement Light Type | Warm White Light |
|---|
Capture Mode
| Trigger Type | Parking Detection |
|---|---|
| Picture Type | Scene Picture、Composition、Close-up Picture |
| Scene Mode | Parallel Parking、Reverse Parking |
| Capture Type | Checkpoint Capture |
Capture Parameters
| Image Format | JPEG |
|---|---|
| Capture Resolution | 2688*1520 (default)1920*1080,1280*720, 704*576,352*288 |
| Smart Recognition | License plate recognition, vehicle entering/exiting parking space status, parking spacestatus detection, parking over spaces detection, parking over line detection |
| Capture Picture Overlay | Location, shooting time, license plate number, shooting number, vehicle color Vehicle type, etc |
| WDR | 140db |
|---|---|
| Defog | supported |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Image Settings | Saturation, brightness, contrast, white balance, and gain are adjustable by client software or web browser. |
| Day/Night Switch | Auto/Scheduled/Manual |
| WDR Switch | On, Time, Brightness |
| Frame Rate | 25fps |
Video
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
|---|---|
| Video Compression | H.265/H264/MJPEG |
| H.264 Type | Low profile Medium profile High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| Scalable Video Coding (SVC) | MJPEG , H.265 and H.264 encoding |
Network
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported |
|---|---|
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNSDDNS,RT,RTSP,RTCP,NTP,SNMP，OTAP |
| API | ONVIF(PROFILE S,PROFILE G), ISAPI, SDK |
| Client | HikCentral,SDKdemo,TPE400 |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Security | One-key restoration, password protection, watermark |
Compression Standard
| Video Compression | H.264/H.265/MJPEG |
|---|---|
| Video Bit Rate | 32 Kbps to 16 Mbps |
Network Function
| Protocol | TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP |
|---|---|
| General | Heartbeat, password protection, and NTP time sync. |
Camera
| Sensor Type | Binocular: 1/2.7" Progressive Scan CMOS per channel |
|---|---|
| Min. Illumination | Color: 0.066Lux @(F2.0, AGC ON) Black & White: 0.026Lux @(F2.0, AGC ON) |
| Max. Resolution | 3520 × 1328 |
| Shutter | 1/16393 s to 1/25 s |
| Day/Night Switch | Supported |
| IR Cut Filter | IR cut filter Blue glass module to reduce ghost phenomenon |
Interface
| RS-485 | 1-ch RS-485 serial port |
|---|---|
| Alarm Input | Not Supported |
| Alarm Output | Not Supported |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface |
| Memory Card Slot | Not Supported |
Smart Function
| ANPR Supported Country/Region | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, HongKongChina, Macao, TaiwanChina, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
|---|
General
| Power Supply | 12 to 24 VDC, wide voltage support hikpoe |
|---|---|
| Protection | IP67 |
| Working Temperature and Humidity | -30 °C to 70 °C (-4 °F to 158 °F) 5% to 95% @ 40°C (non-condensing) |
| Working Environment | 90% or less (non-condensing) |
| Dimensions | 160mm × 160mm × 917.6mm |
| Power Consumption | Max. 18 W |
| Storage Temperature and Humidity | Temperature: -30 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Startup and Operating Conditions | Temperature: -30 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
