描述

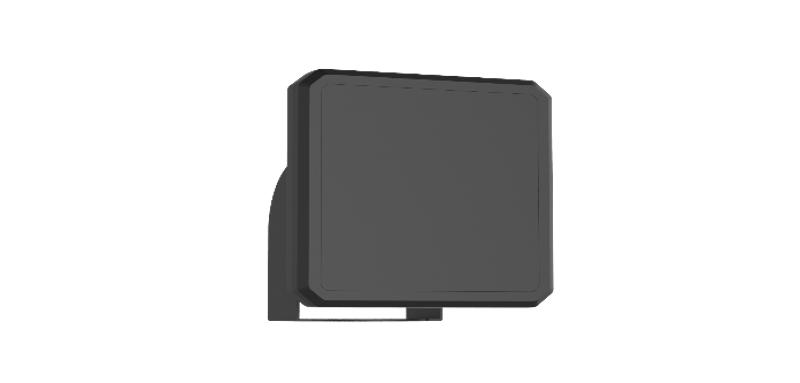

DS-TDSB00-EML
350 m Traffic Parameter Collection Radar
DS-TDSB00-EML 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Radar
| Working Frequency | 60 to 61 GHz |
|---|---|
| Modulation Waveform | FMCW |
| Horizontal Detection Angle | ± 14.5°@Narrow Beam, ± 60°@Wide Beam |
| Vertical Detection Angle | ± 4.5°@Narrow Beam, ± 12.6°@Wide Beam |
| Coverage Lanes | Up to 8 lane(s) |
| Detection Distance | 350 m@Narrow Beam,100 m@Wide Beam |
| Distance Resolution | 0.88 m@Narrow Beam,0.3 m@Wide Beam |
| Speed Resolution | 0.13 m/s |
| Angle Resolution | 1.86°@Narrow Beam,6.23°@Wide Beam |
| Speed Measuring Range | -300 to 300 km/h |
| Max. Detectable Targets | Up to 256 target(s) |
| Speed Measuring Accuracy | ±2 km/h |
| Trigger Mode | Approaching direction,Leaving direction,Bidrection |
| Sweep Bandwidth | 169M Hz@Narrow Beam,500M Hz@Wide Beam |
Interface
| Network Interface | 1 RJ 45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| RS-485 | 1 RS-485 |
General
| Power | DC 12 V to 24 V, 1.5 A, max. 18 W, two-core terminal block |
|---|---|
| Material | Cover: PC, main body: ADC12 |
| Dimensions | 173 mm × 175.6 mm × 202.5 mm (6.81" × 6.91" × 7.97") (L × W × H) |
| Package Dimensions | 270 mm × 250 mm × 223 mm (10.62" × 9.84" × 8.78") (L × W × H) |
| Weight | Approx. 1.80 kg (9.97 lb.) |
| With Package Weight | Approx. 2.33 kg (5.14 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| Installation Height | 6 to 10 m (Recommend height: 6 m) |
Approval
| EMC | EN 301 489-1 V2.2.3:2019,EN 301 489-3 V2.1.1:2019 |
|---|---|
| RF | CE-RED：EN IEC 61326-1:2021,DRAFT EN 305 550 V2.1.0:2017,EN 62479:2010,EN 50663:2017 KC: KS X 3124,KS X 3123 |
| Safety | CB:IEC 61010-1:2010,IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
