描述

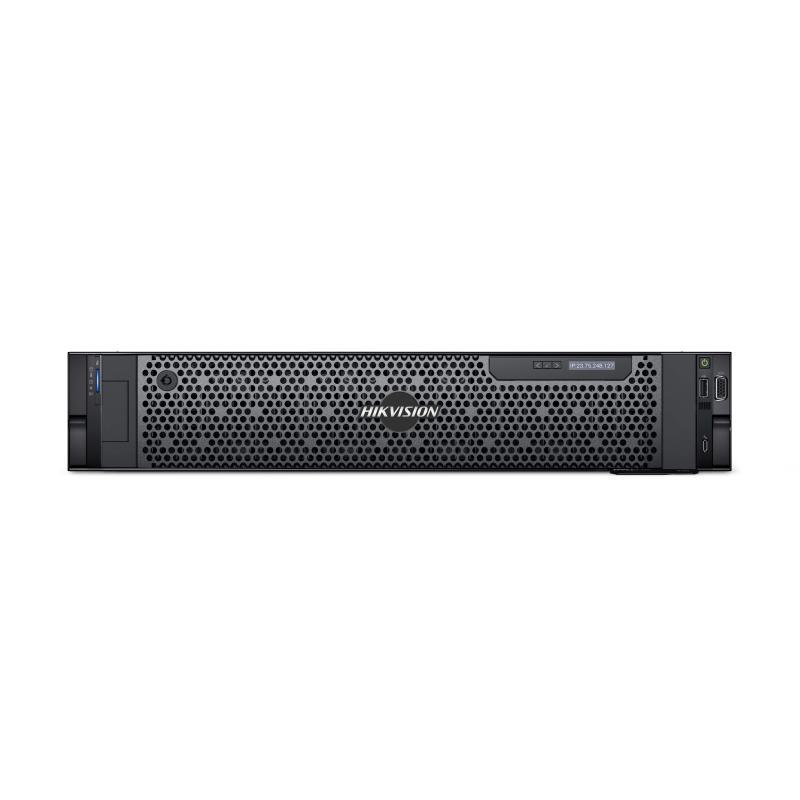

DS-VH22-R/HW2(4510)
Dual-socket Rackmount Servers
DS-VH22-R/HW2(4510) 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Hardware Specifications
| CPU | 1 x 4510 (2.4 GHz-4.1 GHz, 30 MB Cache， 12 Cores, 24 Threads ) /4509Y (2.6 GHz-4.1 GHz, 22.5 MB Cache， 8 Cores, 16 Threads ) |
|---|---|
| Memory | 32GB x 1 • Support 16GB/32GB/64GB DDR5 RDIMM ECC • Slots: 16 x DDR5 DIMM slots, supports RDIMM 16×64 GB MAX (1 CPU Configuration with 8 slots available，2 CPU configuration with 16 slots available.) |
| Hard Disks | 2 x 2TB 7.2K SATA(RAID_1) • 2TB/ 4TB/ 8TB/ 12TB/ 16TB/22TB 7.2K SATA Hot-plug HDD • 480GB/ 960GB/ 1.92TB/ 3.84TB SATA Hot-plug SSD • Slots: 8 x 3.5-inch SAS/SATA (HDD/SSD) slots, supports HDD 8 x 22TB max (Empty slots do not include hard drive bays by default) |
| Storage Controller | • PERC H355 adaptor LP, support RAID 0/1 |
| Supported Operating Systems | WinSvr2022 multilingual version pre-installed |
| PCIe Slots | • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) |
Management
| Remote Manage | •iDRAC9 •iDRAC Direct •iDRAC RESTful API with Redfish •iDRAC Service Manual |
|---|---|
| OpenManage™ Software | •OpenManage Enterprise •OpenManage Power Manager plugin •OpenManage Service plugin •OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in •OpenManage Enterprise Integration for VMware vCenter •OpenManage Integration for Microsoft System Center •OpenManage Integration with Windows Admin Center |
| Integrations and Connections | •BMC Truesight •Microsoft System Center •OpenManage Integration with ServiceNow •Red Hat Ansible Modules •Terraform Providers •VMware vCenter and vRealize Operations Manager |
| Security | •Cryptographically signed firmware •Data at Rest Encryption (SEDs with local or external key mgmt) •Secure Boot •Secured Component Verification (Hardware integrity check) •Secure Erase •Secured-core server •Silicon Root of Trust •System Lockdown (requires iDRAC9 Enterprise or Datacenter) •TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Ports
| USB 3.0 | 0（Front）+1（Rear） |
|---|---|
| USB 2.0 | 1（Front）+1（Rear） |
| Ethernet Port | 1 GbE×6 |
| VGA | 2 |
| iDRAC Direct (Micro-AB USB) Port | 1 |
| iDRAC Ethernet Port | 1 |
| Manager Port | 1 |
General
| Net Weight | 28.6 kg (63.0 lb) |
|---|---|
| Gross Weight | 46.4 kg (102.29 lb) |
| Dimension (W × H × D) | 482.0 mm × 86.8 mm × 721.62 mm (18.97'' × 3.41'' × 28.4'') |
| Package Dimensions (W × H × D) | 667.0 mm × 327.0 mm × 930.0 mm (26.26'' × 12.87'' × 36.61'') |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-104 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 800 W，50/60 Hz，100-240 VAC (Auto adjustment)，9.2-4.7 A |
| Form Factor | 2U Rack |
