描述

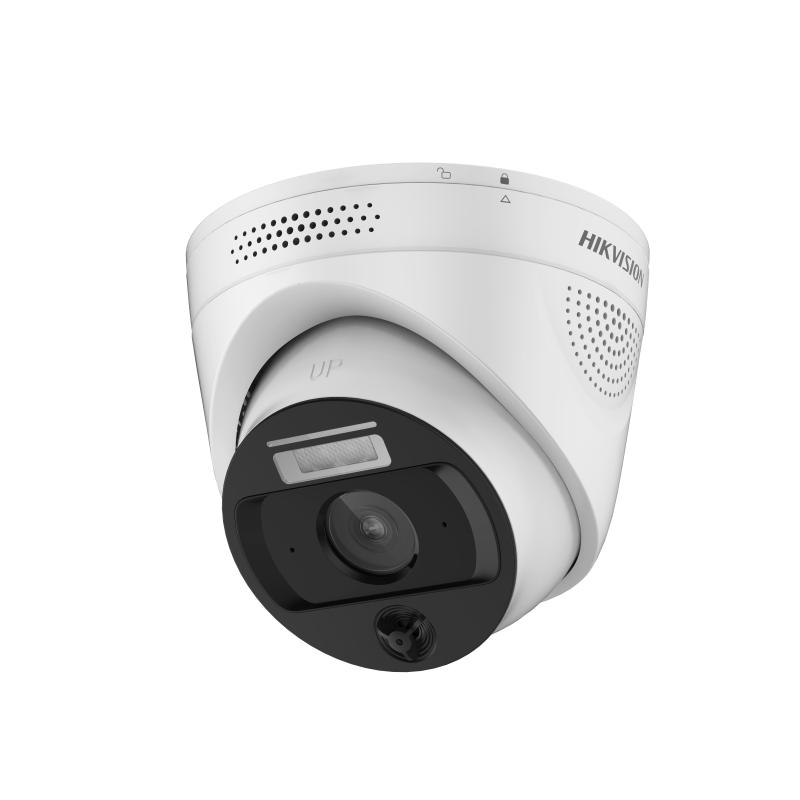

HF-VH243
Fire Detection Camera
HF-VH243 屬海康威視消防產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應。消防裝置須由註冊消防裝置承辦商安裝及檢驗。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Max. Image Size |
2560 × 1440 |
| Sensor Type |
1/2.7" Progressive Scan CMOS |
| Main Stream |
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream |
25 fps (704 × 576, 640 × 480，352 × 288) |
| Min. Illumination |
Color: 0.015 Lux@(F1.6, AGC ON) |
| Lens |
2.8mm：horizontal FOV113.31°，vertical 59.85°，diagonal FOV 136.26° 4mm：horizontal FOV 92.59°，vertical 49.67°，diagonal FOV 111.14° |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC and white balance can be adjusted through the client or browser. |
| Adjusted Angle |
Horizontal: 0° ~ 360°; Vertical: 0° ~ 70°; rotated: 0° ~ 360° |
| WDR |
Digital WDR |
| Shutter |
1/25 ~ 1/100,000 s |
| Day/Night Switch |
IR cut filter |
| Image Enhancement |
BLC, 3D DNR |
| SVC Encoding |
H.264, H.265 |
| H.265 |
Main Profile |
| H.264 |
Main Profile/High Profile |
| Main Stream Video Compression Standard |
H.265;H.264 |
| Sub Stream Compression Standard |
H.265;H.264 |
| Video Bitrate |
256Kbps ~ 8 Mbps |
| General |
Reset, anti flicker, heartbeat, image, password protection, video occlusion, IP address filtering |
| Intelligent Alarm |
on/off duty alarm |
| WEB Configuration |
Support web preview, configuration |
| Protocol |
TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IPv4, UDP |
| Storage |
Support microSD /microSDHC /microSDXC card, up to 256 G |
| Interface Protocol |
ONVIF(PROFILE S, PROFILE G), ISAPI |
| Power Comsumption |
≤ 6.5 W |
| IR Range |
30 m |
| Accessory Type |
Wall mount、pendant mount、junction box |
Detector
| Temperature Sensing Mode |
Non-contact temperature sensing |
| Thermography Alarm Shielded Area |
Customized 4 rectangular regions |
| High Temperature Alarm |
Yes |
| Alarm Indicator Light |
Red/Blue：Alarm（Red/Blue light mode optional） Green：Normal Yellow：Fault |
| Temperature Measurement Range |
-20 ℃ ~ 120 ℃ |
| Thermography Precision |
±3° |
Function
Interface
| Alarm Interface |
1 way alarm in，2 way alarm out |
| Audio Interface |
1 built-in microphone, 1 built-in speaker |
| Auxiliary Power Interface |
DC 12V |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
General
| Power |
DC 12V POE:IEEE802.3af,CLASS 2 |
| Using Environment |
Temperature: -30 ℃ ~ 60 ℃ Humidity: less than 95% (no condensing) |
| Dimension (φ × H) |
Φ 130 × H 101 mm |
| Execution Standard |
Q/HKD 006-2019 |
| Mounting Height |
Wall mounted: 2.4 m~2.8 m; Pendent: 3.3 m~6 m |
| Ingress Protection |
IP66 |
| Wireless Communication |
LAN |
