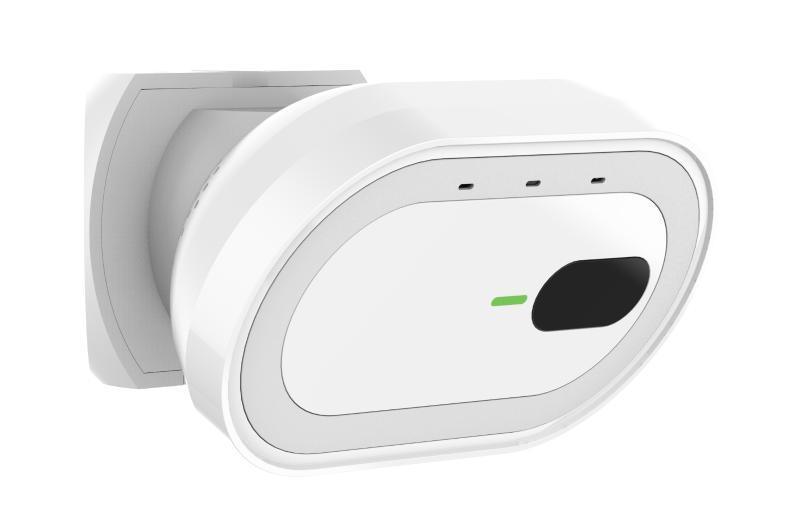

HIKVISION HM-TD1018-1/QR Thermal Presence Detector 是海康威視熱成像雲台或雙光譜定位系統。香港防盜為安裝商及經銷商。承重、電源及預置位要現場核；規格以下方原廠資料為準。
HM-TD1018-1/QR
Thermal Presence Detector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution160 × 120
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 50 mK (25°C, F#=1.1)
- Focal Length1.3 mm
- Field of View90.0° (H)x65.2° (V)
- Min. Focusing Distance0.01 m
- ApertureF1.0
- Video and Audio
- Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
- Sub-streamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
- Video CompressionH.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile
- Network
- ProtocolsIPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL
- Web BrowserInternet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+
- Interface
- Alarm Output1, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload
- Audio InputBuilt-In Mic
- Audio OutputBuilt-In Speaker
- Communication Interface1, RS-485 interface (half duplex)
- Reset Key1 reset button built in the motherboard
- Radar
- Working Frequency Range60GHz ~64GHz
- Modulation WaveformFMCW
- Capture Distance0.3 m-4m
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power SupplyDC 12 V（±20%）：0.5 A, max. 5W PoE (802.3af)：36 V to 57 V, 0.17 A to 0.11 A, max. 6W
- Working Temperature/HumidityTemperature: -20°C to 50°C (-4°F to 122°F) Humidity: 95% or less
- Protection LevelIP40
- Dimensions130mm*102mm*75mm
- 0.38kg (0.84 lb)
- MountCorner Mount
- Certificate
- EMCEN55032
