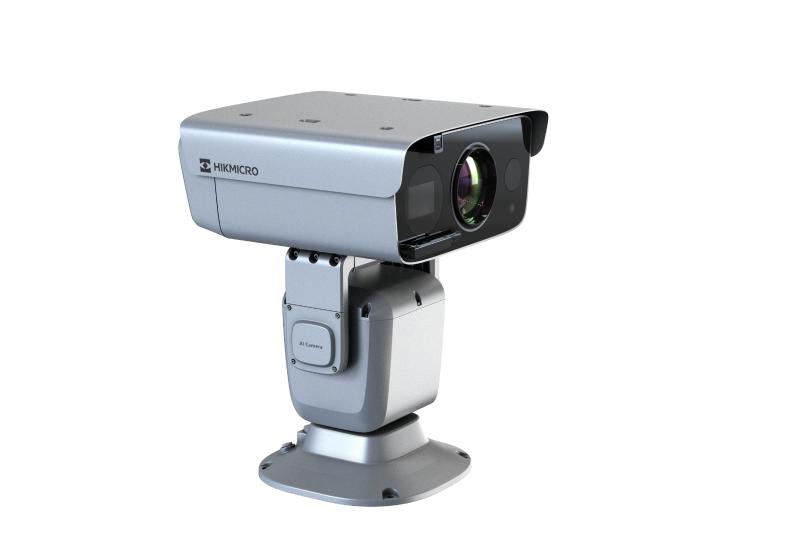

HM-TD6368-75C4FLD/G0/T2Y
Thermal & Optical Bi-spectrum Network Positioning System
HM-TD6368-75C4FLD/G0/T2Y 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Thermal Module
| Image Sensor | VOx Uncooled Focal Plane Arrays |
|---|---|
| Resolution | 640 × 512 |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | ≤ 20 mK (@25° C,F# = 1.0) |
| Focal Length | 75 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.16 mrad |
| Aperture | F1.0 |
| Field of View | 5.9°（H）*4.7°（V） |
| Min. Focusing Distance | 6m |
| Digital Zoom | X2, x4, x8 |
Optical Module
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Resolution | 2688 × 1520, 4 MP |
| Min. Illumination | Color: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux@ (F1.5, AGC ON) ,0 Lux with IR |
| Field of View | 55.56°(H)*32.4°(V)~1.86°(H)*1.06°V) |
| Focal Length | 6-360mm, 60x |
| Aperture (Range) | F1.59-5.42 |
| Focus Mode | Auto & Semi-auto & Manual |
| Shutter Speed | 1.1 s to 1/30,000 s |
| WDR | 120 dB |
| Optical Defog | Yes |
| Digital Zoom | x2, x4, x8, x16 |
Image Effect
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
|---|---|
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| Image Stabilization | Thermal channel supports EIS. Optical channel supports OIS. |
PTZ
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -85° to + 85° (auto flip) |
|---|---|
| Pan Speed | Configurable, From 0.01°/s to 110°/s |
| Tilt Speed | Configurable, From 0.01°/s to 50°/s |
| Proportional Zoom | Yes |
| Presets | 300 in total |
| Patrol Scan | 8; Up to 32 Presets Per Patrol |
| Pattern Scan | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Yes |
| Park | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PT Status | Turn On/Turn Off |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
Illuminator
| IR Distance | IR Distance Measurement: 2KM |
|---|---|
| Laser Distance | Up to 2000m |
| IR Intensity and Angle | Automatically adjusted |
Smart Function
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene |
|---|---|
| Temperature Measurement | Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Dynamic fire point detection, up to 10 fire points detectable. |
| Smoke Detection | Up to 6km detection ability with 5m*5m smoke |
Video and Audio
| Main Stream | Optical channel 50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288) |
|---|---|
| Sub-stream | Optical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 640 × 512, 384 × 288) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
Video and Image
| Color Palettes | 15 palettes (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Icefire, Rain, Red hot,Green hot, Dark blue) |
|---|
Network
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|---|---|
| Network Storage | MicroSD/SDHC/SDXC card (up to 512 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| API | ISAPI, ISUP, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
Interface
| Alarm Input | 7-ch inputs (0-5 VDC) |
|---|---|
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear Level; Impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface |
| Analog Video Output | 1.0 V [p-p]/75 Ω, BNC for thermal channel |
General
| Power | 36VDC ± 20%, 48VDC ± 20%, two-core terminal block |
|---|---|
| Power Consumption | 7 A, max. 150 W |
| Work Temperature/Humidity | From -40°C to 70°C (-40°F to 158°F); Humidity: 95% or Less |
| Wiper | Yes |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimension | 543.8mm × 399.7mm × 390.3 mm (21.41'' × 15.74'' × 15.37'') |
Detection Range Table/Smart Function Range
| VCA Range for Humans | 975m |
|---|---|
| VCA Range for Vehicles | 2250m |
Approval
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); IC (ICES-003: Issue 7) |
|---|---|
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; |
| Environment | CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006 |
| Protection | IP66: IEC 60529-2013 |
| Other | NEMA 4X (NEMA 250-2018) |
