描述

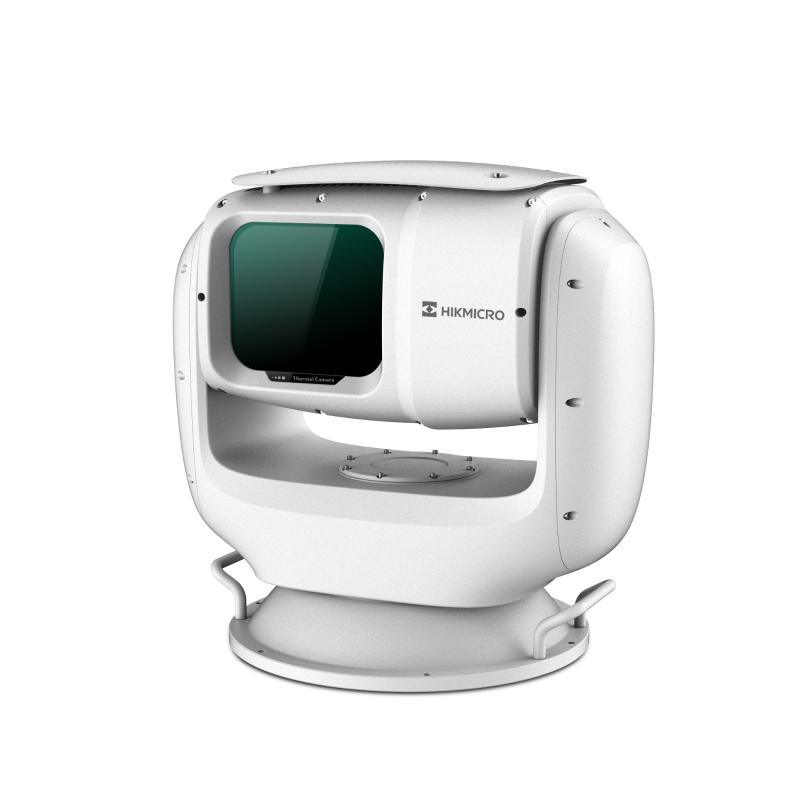

HIKVISION HM-TD7168-75/W Thermal Panoramic Scanner 是海康威視熱成像雲台或雙光譜定位系統。香港防盜為安裝商及經銷商。承重、電源及預置位要現場核；規格以下方原廠資料為準。
HM-TD7168-75/W
Thermal Panoramic Scanner
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution39144 x640
- Pixel Pitch12 μm
- NETD ≤ 25 mK (@25° C,F# = 1.0)
- Focal Length75 mm
- Focus ModeSemi-auto & Manual
- IFOV0.16 mrad
- ApertureF1.0
- Field of View360° × 5.9° (H × V)
- Min. Focusing Distance8 m
- Image Effect
- Target ColorationSupported in white hot and black hot mode
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -25° to + 45°
- Pan Speed360° / 4.93s
- Smart Function
- VCASupport 3 VCA rule types (Intrusion, Region Entrance, and Region Exiting), up to 200 VCA rules
- Video and Audio
- Main Stream25 fps (4096 × 2160)
- Sub-stream25 fps (512 × 640)
- Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect, Hik-Central, HCP
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input1-ch inputs (0 to 5 VDC)
- Alarm Output1-ch relay outputs, alarm response actions configurable
- Alarm ActionSD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Communication Interface1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface. 1, RS-485 interface
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply30 VDC~60 VDC, two-core terminal block
- Power ConsumptionMax. 150 W
- Working Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% ± 3% (no condensation)
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimensions408 mm × 310 mm × 407 mm
- Approx. 25kg (55.1 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans1500 m
- VCA Range for Vehicles4500 m
