描述

HIKVISION IC S50 是 13.56 MHz 非接觸式 IC 門禁卡（MIFARE Classic 1K，俗稱 M1 卡，ISO/IEC 14443 A），供海康門禁讀頭及門禁終端拍卡使用。MIFARE Classic 類卡可被讀取及複製，高保安位置建議改用 DESFire 等加密卡（說明見 FM11RF08（M1 卡）安全性）。香港防盜為安裝商及經銷商；規格以下方原廠資料為準。

相關方案：海康門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

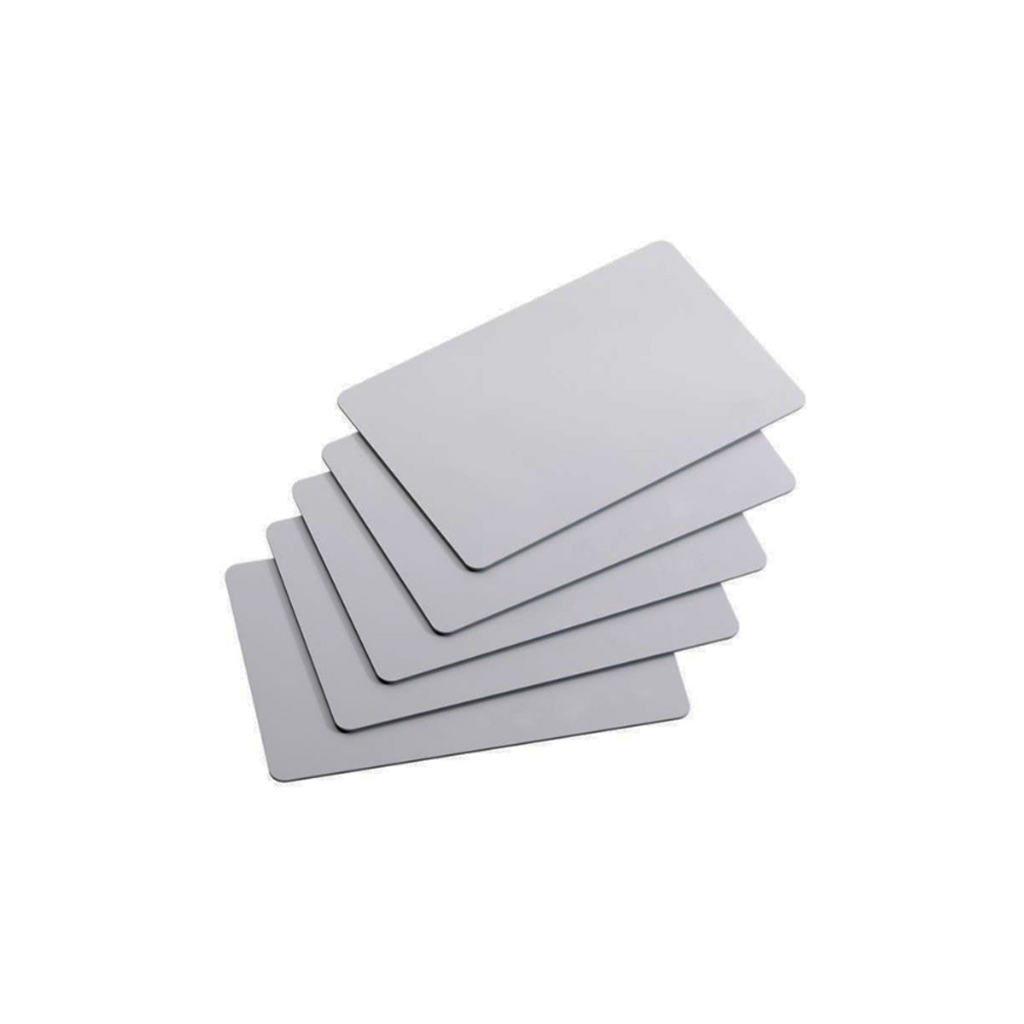

HIKVISION IC S50

Mifare 1 Non-contacting IC Card

Features

MIFARE RF Interface (ISO/IEC 14443 A)
 Non-Contacting data transmission and supplied power(no battery needed)
 Working distance: no more than 100mm (depends on the antenna dimension)
 Working frequency: 13.56 MHz
 High data transmission speed: 106 k bit/s
 Data integrity protection: 16 bit CRC, odd-even check, encoding and counting by bit.
 Anti-conflict
 Data transmission and processing time: < 100 ms (including backup and management time)

EEPROM
 1 k byte (16 zones, 4 sections per zone, 16 bytes per section)
 User definable reading/writing condition for memory block
 Long time data storage: 10 years
 100,000 writing times

Security
 Triple accreditation(ISO/IEC DIS9798-2)
 Attack protective radio-frequency channel data encryption
 Two security keys (support multiple security levels) for each section
 Only one serial No. for one card
 Transmission security key to protect the access right of EEPROM during the transmission
