描述

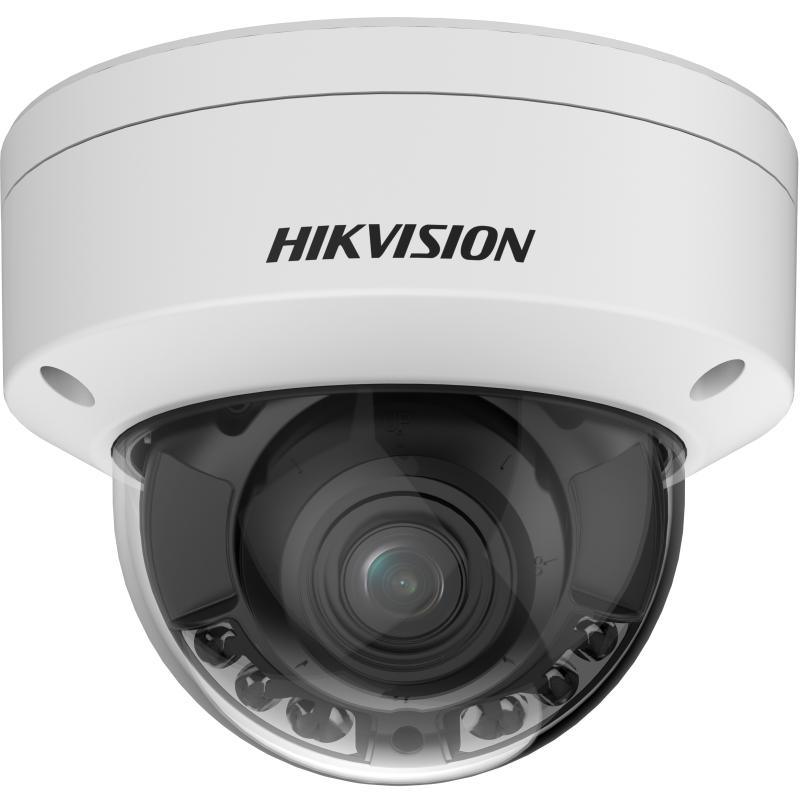

海康威視 iDS-2CD5146G2/V-XZ(H)S(Y) 是 4MP DeepinViewX 電動變焦半球鏡頭，1/1.8 吋 CMOS，最高解像度 2688 × 1520。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：海康威視閉路電視安裝、閉路電視安裝。

iDS-2CD5146G2/V-XZ(H)S(Y)

4MP DeepinViewX Moto Varifocal Dome Camera

Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter, Blue glass module (less ghost phenomenon)
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Iris Type P-iris
Aperture 2.8 to 12 mm: F1.4 to F2.1 8 to 32 mm: F1.7 to F1.7

DORI
OODPCVS Wide: 2.8 to 12 mm: Overview: 75.9 m, Outline: 37.9 m, Discern: 19 m, Perceive: 12.1 m, Characterize: 6.1 m, Validate: 3 m, Scrutinize: 1 m 8 to 32 mm: Overview: 110 m, Outline: 55 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m Tele: 2.8 to 12 mm: Overview: 187.9 m, Outline: 94 m, Discern: 47 m, Perceive: 30.1 m, Characterize: 15 m, Validate: 7.5 m, Scrutinize: 2.5 8 to 32 mm: Overview: 500 m, Outline: 250 m, Discern: 125 m, Perceive: 80 m, Characterize: 40 m, Validate: 20 m, Scrutinize: 6.7 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Illuminator
Supplement Light Type IR,White Light
Supplement Light Range 2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Smart Supplement Light Yes
IR Wavelength 850 nm

AI Open Platform
Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model). Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Video
Main Stream 50 Hz: 25 fps (2688 × 1520，2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520，2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Target Cropping NO
AI Encoding Yes

Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols IPv4,HTTP,SSL/TLS,ICMP,SFTP,SMTP,RTSP,HTTPS,NTP,QoS,WebSocket,FTP,RTP,WebSockets,UDP,DHCP,IGMP,TCP/IP,DNS,RTCP,IPv6,Bonjour
Simultaneous Live View Up to 20 channels
API ISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security AES128/256, complicated password, control timeout settings, TLS 1.2, host authentication (MAC address), Password protection, WSSE and digest authentication for Open Network Video Interface, security audit log, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5), RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.3, HTTPS encryption, watermark, IP address filter
Network Storage NAS（NFS,SMB/CIFS）
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch Yes
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm 1 inputs, 1 outputs (max. 12 VDC/24 VAC, 1 A)
Built-in Microphone 2 built-in microphones
Audio 1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Built-in Speaker 1 built-in speaker
Reset Key Yes
Power Output 12 VDC, max. 100 mA External extension cord less than 10 meters.
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart),alarm input and output,video quality diagnosis
Smart Event parking detection,people gathering detection,object removal detection,loitering detection,audio exception detection,defocus detection,region exiting detection,unattended baggage detection,intrusion detection,scene change detection,Line crossing detection,fast moving detection,region entrance detection
Linkage send email,trigger recording,notify surveillance center,trigger alarm output,Upload to FTP/NAS/memory card,audible warning

Deep Learning Function
Multi-target-type Detection Supports simultaneous detection and capture of human body, face, and vehicle, Gets face features, Gets human body features, Gets vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
Face Capture Detects up to 60 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: up to 40 m (nighttime)
Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection
Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty Detection Supports up to 8 detection regions, and independent arming schedule and linkage method, Supports 2 detection modes: absence detection, on/off duty detection, Supports parameter settings: person on duty, absence duration
AcuSeek Support search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.

General
Power 12 VDC ± 20%, 1.37 A, max. 16.4 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.38A to 0.29 A, max. 16W, 24 VAC ± 20%, 1.07 A, max. 16.1 W
Material Aluminum alloy body
Dimension Ø143 mm × 112 mm (Ø5.63″ × 4.41″)
Package Dimension 180 mm × 170 mm × 170 mm (7.09″ × 6.69″ × 6.69″)
Approx. 900 g (1.98 lb.)
With Package Weight Approx. 1264 g (2.79 lb.)
Storage Conditions -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Integrated Connector Panel No

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
Safety CB: IEC 62368-1: 2014+A11
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
Transport Certification IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
