描述
海康威視 iDS-2CD5586G2-XZ(H)S(Y) 是 8MP DarkFighter 電動變焦半球鏡頭，具 120 dB 寬動態，支援 H.265+ 及 IP67 防水防塵。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

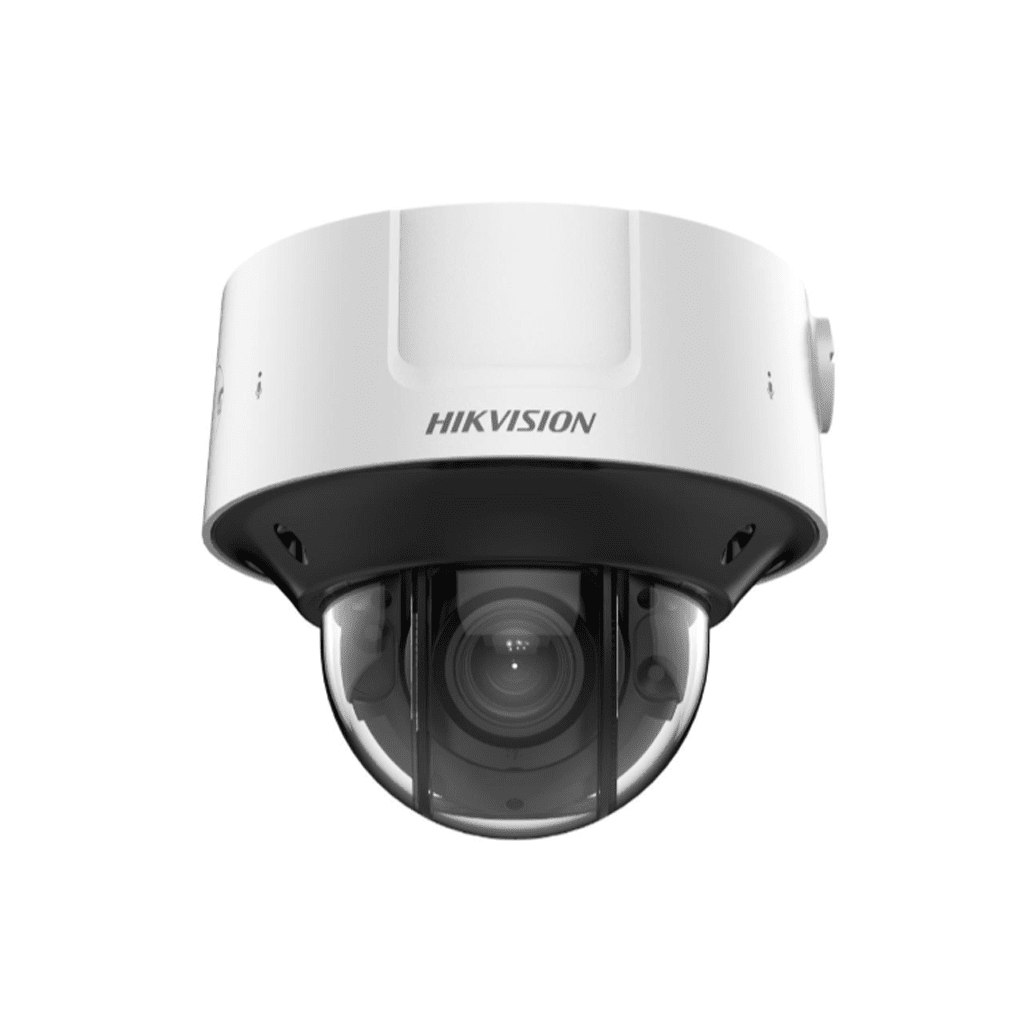

HIKVISION iDS-2CD5586G2-XZ(H)S(Y)
8MP Darkfighter Moto Varifocal Dome Camera
Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance via Darkfighter 2.0 technology
- Clear imaging against strong back light due to 120 dB Auto-WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 4 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- TPM 2.0 for cyber security
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Stabilization | EIS |
| General | |
| Power | 12 VDC ± 20%, 1.18A, max. 13.9 W, PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.34 A to 0.24 A, max. 14.3 W, 24 VAC ± 20%, 0.83 A, max. 12.7 W |
| Material | Aluminum alloy body |
| Dimension | Ø162 mm × 141.8 mm (Ø6.4″ × 5.6″) |
| Package Dimension | 251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.5″) |
| Weight | With -Y: Approx. 1600 g (3.53 lb.), Without -Y: Approx. 1500 g (3.31 lb.) |
| With Package Weight | With -Y: Approx. 2304 g (5.08 lb.), Without -Y: Approx. 2390 g (5.27 lb.) |
| Storage Conditions | With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log |
| Integrated Connector Panel | -Y: No |
