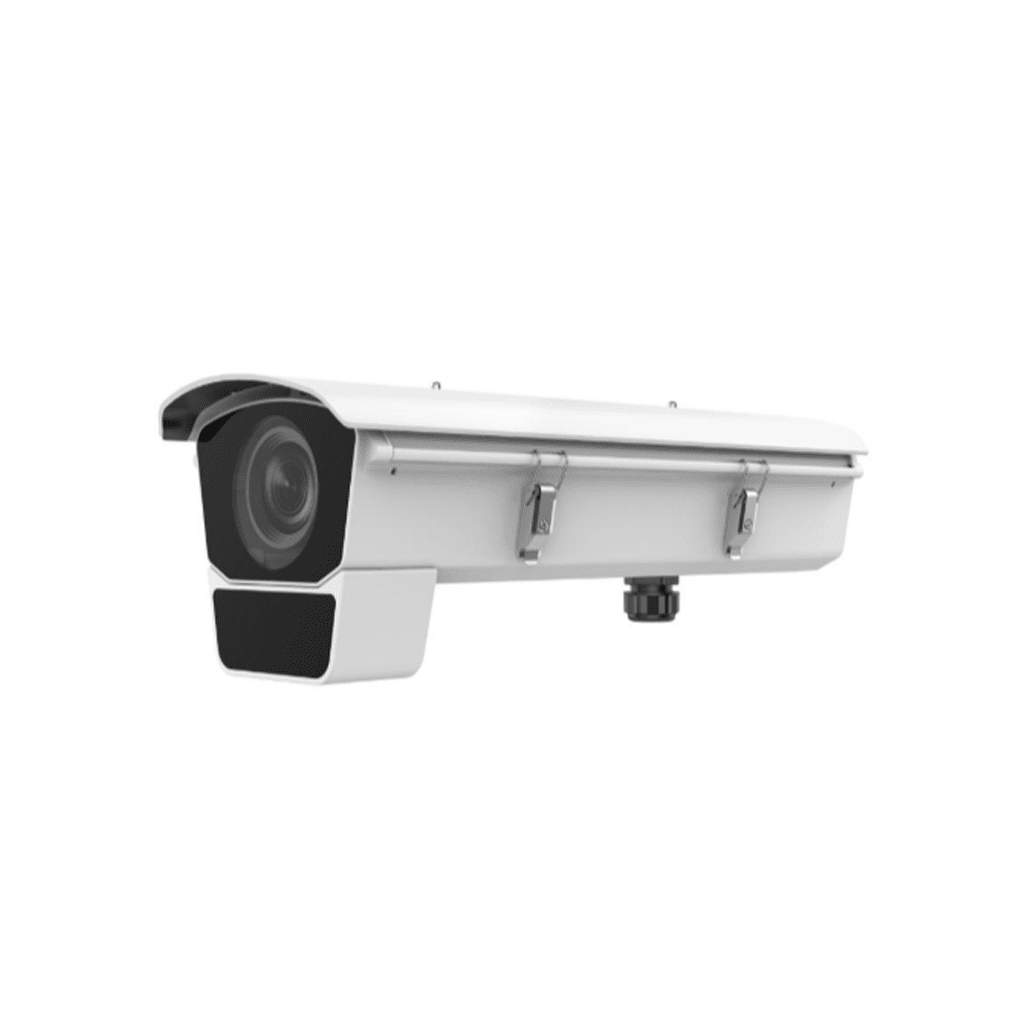

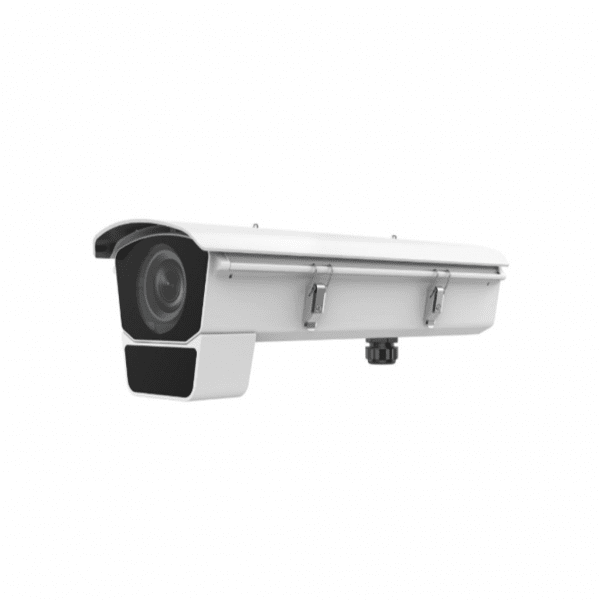

HIKVISION iDS-2CD7026G0/EP-IHSY

2MP DeepinView ANPR Box With Housing Camera

Features

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP66) and vandal proof (IK10)

Specifications

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter Blue glass module to reduce ghost phenomenon
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
Wide Dynamic Range (WDR)	140 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, Defog, 3D DNR
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image Stabilization	EIS
Privacy Mask	8 programmable polygon privacy masks
General
Power	24 VDC ± 20%, 0.9 A, max. 21.6 W, three-core terminal block 24 VAC ± 20%, 0.93 A, max. 22.1 W, three-core terminal block PoE: IEEE 802.3bt, Type3, Class 5, 42.5 V to 57 V, 0.58 A to 0.44 A, max. 24.6 W
Material	Aluminum alloy body, PP sun shield, PC front panel
Dimension	465.3 mm × 169.2 mm × 164.7 mm (18.3″ × 6.7″ × 6.5″)
Package Dimension	615 mm × 360 mm × 225 mm (24.2″ × 14.2″ × 8.9″)
Weight	Approx. 3800 g (8.4 lb.)
With Package Weight	Approx. 6000 g (13.2 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
General Function	Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Heater	Yes
