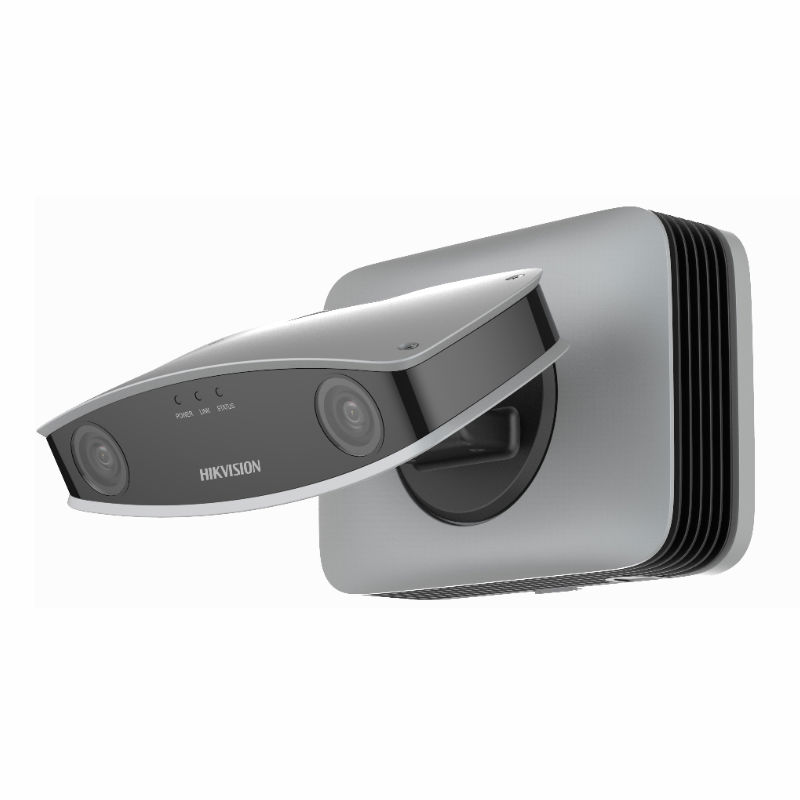

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS ×2
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON) Color: 0.0089 Lux @(F1.6, AGC ON) 0 Lux with IR on
Shutter Speed: 1/25 s to 1/100,000 s
Slow Shutte: rNo
Auto-Iris: No
WDR: 120 dB
2-Axis Adjustment: Tilt: -45° to 90°, rotate: 0° to 355°
DNR: 3D DNR
Day & Night: IR Cut Filter
Lens
Focal Length: Two identical lenses. 4 mm, 6 mm, 8mm, 12mm, optional
Aperture Range: F1.6
FOV: 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 103° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° 8 mm, horizontal FOV 41°, vertical FOV 22°, diagonal FOV 47° 12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 29°
Decoding
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Video
Max. Resolution: 1920 × 1080
H.265+: Support
H.264 Type: Baseline Profile/Main Profile/High Profile
H.264+: Support
H.265 Type: Main Profile
Audio
Environment Noise Filtering: Max. 48 kHz
Audio Sampling Rate: Support
Smart Feature-Set
Exception: Audio exception detection
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Fourth Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Fifth Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Image Enhancement: BLC, HLC, defog, EIS, lens distortion correction, 3D DNR
Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
SVC: Support
Network
Network Storage: Support Micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: Anti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API: ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users 3 levels: Administrator, Operator and User
Web Browser: IE7+, Chrome 18-42, Firefox 5.0+, Safari 5.02+
Client: iVMS-4200
Interface
Communication Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
Audio: 1 audio input (line in), 1 audio output (line out), mono soundtrack
Alarm: 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA)
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
General
Power Supply: 36 VDC, two-core terminal block
Operating Conditions: -10 °C to 40 °C (-14 °F to 104 °F) Humidity 95% or less (non-condensing)
Power Consumption And Current: 36 VDC, max. 27 W, 0.75A
Weight: Approx. 1500 g (3.31 lb)
Shell Material: Metal
Dimensions (W × D × H): 180.4 × 147 × 117.9 mm (7.10″ × 5.79″ × 4.64″)
IR
IR Range: Up to 10 m
Compression
Video Compression: Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264 Fifth stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
Behavior Analysis
Behavior Type: Loitering, and people falling down
Calibration: Manual, auto and one-touch calibration are supported
