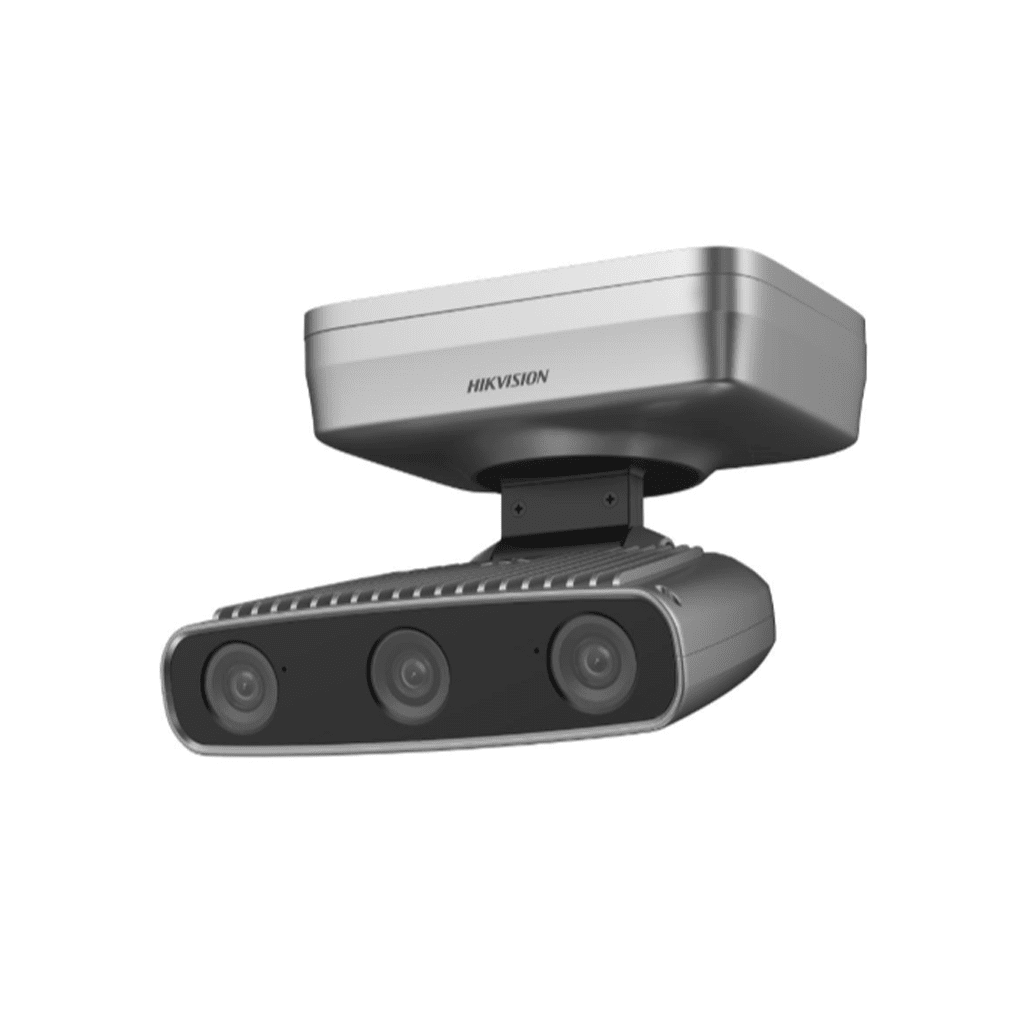

HIKVISION iDS-2CD8447G0/B-RS

DeepinView Triple-Lens Activity Analysis Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
3D DNR technology delivers clean and sharp images
Detects up to 10 abnormal events, such as loitering and people falling down
Adopts high-performance GPU, advanced binocular stereo imaging algorithm and deep learning algorithm
Supports auto, manual and smart calibration modes
Filters targets whose height is lower than the threshold and does not perform falling down detection

Camera
Image Sensor	Middle lens: 1/1.8″ Progressive Scan CMOS, left or right lens: 1/2.7″ Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON)
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 135°
Image Parameters Switch	Yes
Image Settings	saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	Digital WDR
SNR	≥ 50 dB
Image Enhancement	BLC,3D DNR
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	12 VDC ± 20%, 1 A, max. 13.5 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.40 A to 0.30 A, Class 4
Material	Metal
Dimension	177.4 mm × 159.3 mm × 126.9 mm (6.98″ × 6.27″ × 5.0″)
Package Dimension	237 mm × 237 mm × 210 mm (9.33″ × 9.33″ × 8.27″)
Weight	Approx. 1280 g (2.82 lb.)
With Package Weight	Approx. 2170 g (4.78 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
