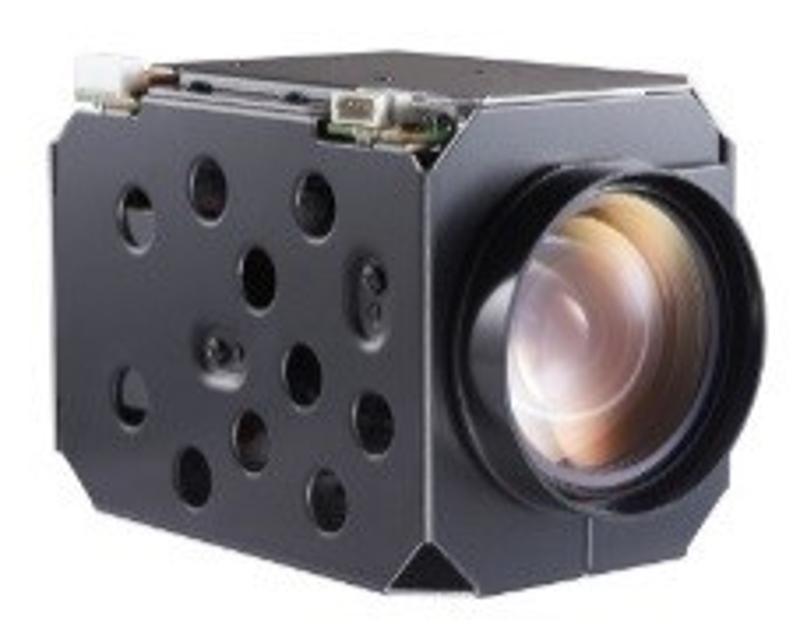

iDS-2ZMN2509N(E)
iDS-2ZMN2509N(E)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera Module
- Image Sensor1/2.8″ progressive scan CMOS
- Min. IlluminationColor: 0.05 Lux @ (F1.6, AGC ON) Black and White: 0.01 lux @ (F1.6，AGC ON)
- Resolution and Frame RateMain Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
- White BalanceMWB, Auto(wide), Auto(narrow), Locked WB, fluorescent lamp, incandescent lamp, warm light lamp, natural light
- Gain ControlAuto/Manual
- SNR>52 dB
- 3D DNRyes
- BLCyes
- Regional Focusyes
- Shutter1/1 s to 1/30,000 s
- Day & NightAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
- Privacy Mask8 masks for each scene, up to 24
- Audio CompressionG.722.1, G.711-a law, G.711-u law, MP2L2, G.726, AAC, PCM, MP3
- Digital Zoom16 ×
- Focusauto, semi-auto, manual
- Regional Exposureyes
- Day/Night SwitchICR
- Video Bit Rate32 kbps to 16384 kbps
- Heartbeatyes
- Exposure Mode auto, iris priority, shutter priority, manual
- ROIUp to 8 for each stream
- Lens
- Focal Length4.8 mm to 120 mm, 25 × optical
- Zoom SpeedApprox. 3.6 s (Optical, Wide-Tele)
- FOVHorizontal: 55° to 2.4° (Wide to Tele) Vertical: 33° to 1.4° (Wide to Tele) Diagonal: 61.5° to 2.8° (Wide to Tele)
- ApertureF1.6 to F3.5
- Function
- Image Enhancement120 dB WDR, HLC, BLC
- Exception DetectionDisk full, disk error, network disconnected, IP address conflict, unauthorized login.
- Smart Encodingsmart264, smart265
- Power-off Memoryyes
- Smart DetectionIntrusion detection, line crossing detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, audio exception detection, motion detection, and video tampering detection
- Face Captureyes
- Road Trafficyes
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,QoS,IPv4,IPv6,UDP,SSL/TLS,WebSocket,WebSockets,802.1x
- APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
- Web BrowserChrome80+, Firefox80+, Safari13+, Edge89
- Simultaneous Live ViewUp to 20 channels
- UserUp to 32 users. 3 levels: Administrator, Operator and User
- Security MeasuresAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access
- Interface
- Communication Interface10 M/100 M Ethernet interface
- Audio I/O1 audio input, 1 audio output
- Alarm I/O1 alarm input, 1 alarm output
- Video Outputno
- SDI Outputno
- RS-485yes
- On-board StorageMicro SD/Micro SDHC/Micro SDXC card, up to 512 GB
- Interface36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)
- CommunicationRS232 interface (VISCA protocol, Pelco-D protocol, Pelco-P protocol, HIKVISION protocol), RS485 interface (Pelco-D protocol, Pelco-P protocol, HIKVISION protocol).
- General
- PowerDC12V±10%
- Power ConsumptionMax. 10 W
- Operating ConditionsTemperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%
- Dimensions50 mm × 60 mm × 88.6 mm (1.97″ × 2.36″ × 3.49″)
- Approx. 266 g (0.59 lb.)
