描述

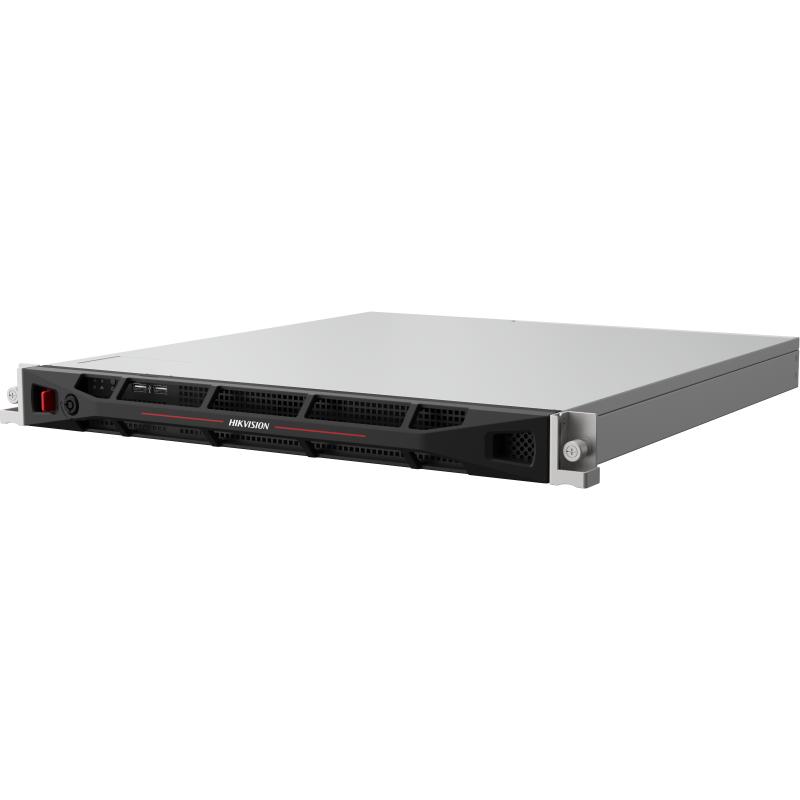

iDS-67064NXI-M1/AI

NVS DeepinMind

iDS-67064NXI-M1/AI 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

AI Open Platform Performance

Live Video Analysis	16-ch 4 MP or 8-ch 6 MP or 4-ch 8 MP
Auto-Switch Video Analysis	64-ch
Scheduled Capture Analysis	64-ch
Offline Picture Analysis	4 image per GPU per second or 1 image per GPU per second ( Large model)

Intelligent Analytics

AI by NVR

Pre-installed AI Algorithm Package Human (3 Algorithm models ) 1. Facial recognition: 2. People counting: regional people counting, people counting statistics 3. PPE: safety helmets and reflective vests detection Vehicle (2 Algorithm models ) 1. Vehicle attributes: vehicle brand,vehicle color, vehicle type 2. Non-motorized vehicle detection: motorcycle, bicycles Dangerous Event (2 Algorithm models ) 1. Fire and smoke detection 2. Occupation of fire escape Behavior (3 Algorithm models ) 1. Street level behavior : falling down detection, people gathering detection, fast moving detection, physical conflict detection 2. Indoor: playing phone, sleeping on duty, absence, number of people allowed, overstaying detection 3. Perimeter: intrusion detection, line crossing detection, region entrance detection, region exiting detection 4. Smoke detection, call detection AIOP (Up to 16 models) Model type: detection model, classification model, mixed model (detection model and classification model) 1 engines in total, One engine can support four algorithm models; each algorithm model supports one real-time video stream analysis or a maximum of 8 auto-switch video analyses (switch time between 10 to 3600 seconds)

Engine

2 × GPU Card (1 Card = 4 * KT2 enine )

Video and Audio

IP Video Input	64-ch Up to 8 MP resolution
Incoming Bandwidth	1024Mbps
Outgoing Bandwidth	1024Mbps
HDMI Output	1 × HDMI output
VGA Output	1 × VGA output
Audio Output	1-ch, 3.5mm interface
Two-Way Audio	1-ch, 3.5mm interface

Decoding

Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF

Network

Network Interface	4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection	128
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Camera Access Protocol	ONVIF profile S; ONVIF profile T (Version 2.2); RTSP

Auxiliary Interface

Serial Interface	1 RS-232, 2 RS-485 (half-duplex)
Alarm In/Out	8/4
USB Interface	Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0

General

Power Supply	100 to 240 VAC, 50 to 60 Hz, redundant power supply
Consumption	≤ 400 W (without HDD)
Working Temperature	-10 to 55° C (14 to 131° F)
Working Humidity	10 to 90%
Dimension (W × D × H)	436 × 460 × 44 mm (17.17" × 18.11" × 1.73")
