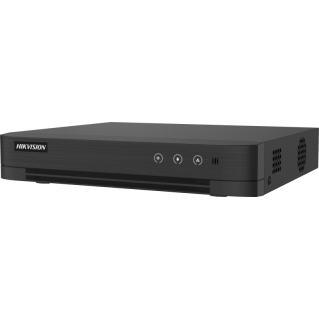

HIKVISION iDS-7204HQHI-M1/T 4-ch 1080P 1U H.265 AcuSense DVR

HIKVISION iDS-7204HQHI-M1/T 4-ch 1080P 1U H.265 AcuSense DVR

查詢價錢

4-ch 1080P 1U H.265 AcuSense DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Deep learning -based perimeter protectio
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 6 MP)
  • Encoding ability up to 3K/5M Lite @ 12 fps
  • Physical Interface No. Description No. Description 1 Video and coaxial audio in 5 AUDIO IN, RCA connector 2 HDMI interface 6 LAN network interface and USB interface 3 VGA interface 7 12 VDC power input 4 AUDIO OUT, RCA connector 8 GND

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
貨號: iDS-7204HQHI-M1-T 分類: , ,

描述

iDS-7204HQHI-M1/T

4-ch 1080P 1U H.265 AcuSense DVR

Specification

Video And Audio

  • IP Video Input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 10 80p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input 3K(2880 × 1620)@25/20 fps, 5 MP(2592 × 1944)@
  • Video Output ModeHDMI/VGA simultaneous output
  • HDMI Output1-ch, 1920 × 108 0/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback 4-ch Recording

Decoding

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@ 12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/108
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u Audio Bitrate 64 Kbps Network Total Bandwidth 72 Mbps

Network

  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection32

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • USB InterfaceReal panel: 2 × USB 2.0
  • Alarm In/OutN/A (optional to support)

General

  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 8 W (without HDD)
  • Working Temperature-10 ° C to +55 ° C (+14 ° F to +131 ° F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
  • Weight≤ 1 kg (without HDD, 2.2 lb.)

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。 官方規格書 PDF
