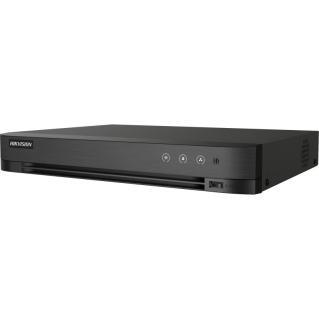

HIKVISION iDS-7204HQHI-M1/XT 4-ch 1080p 1U H.265 AcuSense DVR

查詢價錢

4-ch 1080p 1U H.265 AcuSense DVR

4 channels and 1 HDD 1U AcuSense DVR
Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
Support 2-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 6-ch network cameras can be connected
Support All channels Motion Detection Technology

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

海康威視 iDS-7204HQHI-M1/XT 是 4 路 1080p 1U H.265 AcuSense 錄影機（DVR），可接 4 路同軸鏡頭，另可接 IP 鏡頭最多 6 路。香港防盜為安裝商及經銷商，規格以原廠為準。

iDS-7204HQHI-M1/XT

4-ch 1080p 1U H.265 AcuSense DVR

IP Video Input2-ch (up to 6-ch), Up to 6 MP resolution
Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps HDCVI Input 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps CVBS Input PAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output Audio In put 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;7
Synchronous playback4-ch Recording
Stream TypeVideo, Video & Audio
Audio CompressionG.711u Audio Bitrate 64 Kbps

Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface
Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection32 Total Bandwidth 72 Mbps

SATA1 SATA interface, up to 10 TB capacity for each disk Serial Interface RS-485 (half -duplex)
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/OutN/A (optional to support)
