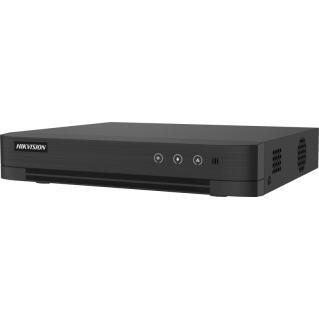

HIKVISION iDS-7208HQHI-M1/T 8-ch 1080P 1U H.265 AcuSense DVR

Video And Audio

• IP Video Input2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1 080p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input 3K(2880 × 1620)@25/20 fps, 5 MP(2592 × 1944)@
• Video Output ModeHDMI/VGA simultaneous output
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 108 0/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback 8-ch Recording

Decoding

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not en abled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/108
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u Audio Bitrate 64 Kbps Network Total Bandwidth 96 Mbps

Network

• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection64

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• USB InterfaceReal panel: 2 × USB 2.0

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 12 W (without HDD)
• Working Temperature-10 ° C to +55 ° C (+14 ° F to +131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
• Weight≤ 1 kg (without HDD, 2.2 lb.)
