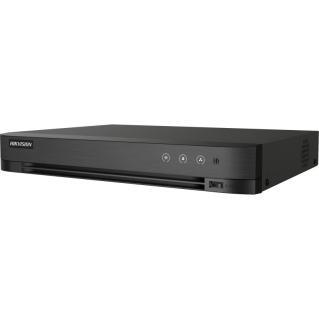

HIKVISION iDS-7208HQHI-M1/XT 8-ch 1080p 1U H.265 AcuSense DVR

Video And Audio

• IP Video Input4-ch (up to 12-ch), Up to 6 MP resolution
• Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps HDCVI Input 3K(2880×1620)@2 5fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps CVBS Input PAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1 024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your devi ce only has 1 audio input, the tag may not describe it.
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Decoding

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;7
• Synchronous playback8-ch Recording
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u Audio Bitrate 64 Kbps

Network

• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface Auxiliary Interface Serial Interface RS-485 (half -duplex)
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection64 Total Bandwidth 96 Mbps

Auxiliary Interface

• SATA1 SATA interface, up to 10 TB capacity for each disk
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/OutN/A (optional to support)

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 18 W (without HDD)
• Working Temperature-10 ° C to + 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
• Weight≤ 1.78 kg (3.9 lb) (without HDD)
