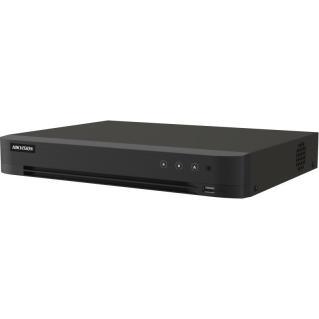

HIKVISION iDS-7216HUHI-M1/T 16-ch 5MP 1U H.265 AcuSense DVR

Video And Audio

• IP Video Input8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25/20fps, 5 MP (2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output CVBS Input PAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Recording

Decoding

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual -stream Support
• Synchronous playback16-ch
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u Audio Bitrate 64 Kbps Network Total Bandwidth 128Mbps

Network

• Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface Wi -Fi Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection128

Auxiliary Interface

• SATA1 SATA interfaces
• CapacityUp to 10 TB capacity for each disk Serial Interface N/A (optional to support)
• USB InterfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0
• Alarm In/OutN/A (optional to support)

General

• Power Supply12 VDC, 3.33 A
• Consumption≤ 40 W
• Working Temperature-10 ° C to +55 ° C (+14 ° F to +131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)319 × 237 × 48 mm (12.6 × 9.3 × 1.9 inch)
• Weight≤ 2.1 kg (4.6 lb)
