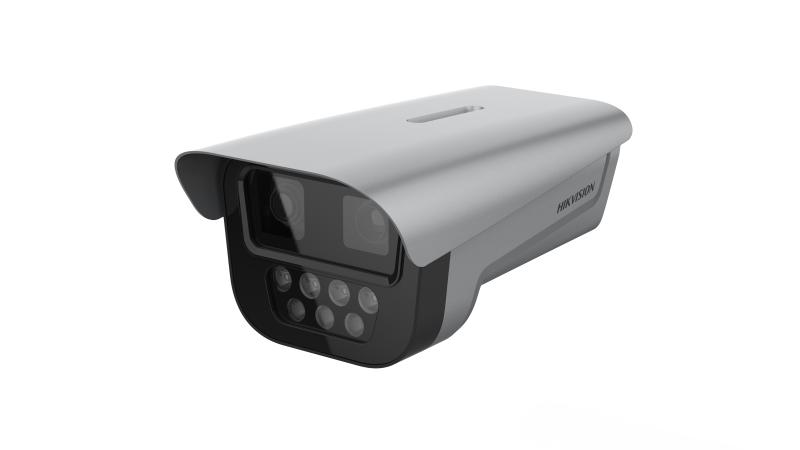

iDS-TCM441-HI
4MP Dual-sensor IR Smart Monitoring Camera
iDS-TCM441-HI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 2 sensors, 1/1.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 70 to 40000 μs |
| Day & Night | IR cut filter |
Lens
| Focal Length & FOV | Channel 1: 8 to 32 mm, horizontal FOV 42.6° to 15.1°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.8° to 17.3°, Channel 2: 10 to 50 mm, horizontal FOV 33.4° to 8.8°, vertical FOV 18.7° to 4.9°, diagonal FOV 38.4° to 10.1° |
|---|---|
| Focus | Auto |
| Iris Type | Auto-iris: DC drive |
| Aperture | 8-32mm: F1.7 10-50mm: F1.7-2.0 |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Supplement Light Number | 7 |
| Built-in Supplement Light Range | Up to 50 m |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 276, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
| Third Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288) |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP |
|---|---|
| Simultaneous Live View | Up to 10 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/Host | Up to 16 users,3 user levels: administrator, operator, and user |
| Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-MD5; EAP-LEAP; EAP-PEAPv),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2; 1.3,Host authentication (MAC address) |
| Network Storage | Local storage,CVR,NVR,ANR, Micro SD/TF card (1TB) |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Schedule, Auto, Manual |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 1 TB |
| Alarm | 1 input(s),1 output(s) |
| RS-485 | 1 RS-485 |
Road Traffic and Vehicle Detection
| Coverage | Up to 3 lane(s) |
|---|---|
| Smart Function | Smart mode: License plate recognition,Vehicle type classification,Vehicle color recognition,Vehicle Make recognition,Motorcycle helmet detection,Manned motorcycle detection Traffic flow detection: average speed, traffic flow, queuing length, and traffic status Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| No License Plate Detection | Supported |
| Motorcycle LPR | Supported |
| Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle |
| Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Capture Speed Range | 5 to 120 km/h |
Face Detection
| Face Capture | Channel 2 supported Detects up to 40 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures |
|---|
General
| Power | DC 36 V ±20%, 1.2 A, max. 42 W, two-core terminal block |
|---|---|
| Material | ADC+PC |
| Dimension | 373 mm × 212 mm × 165 mm (14.67" × 8.32" × 6.5") (L × W × H) |
| Package Dimension | 505 mm × 422 mm × 360 mm (19.88" × 16.61" × 14.17") (L × W × H) |
| Weight | Approx. 2.9 kg (6.40 lb.) |
| With Package Weight | Approx. 6.4 kg (14.1 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | One-key reset,Three streams,Privacy mask,Heartbeat,Password protection |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
