描述

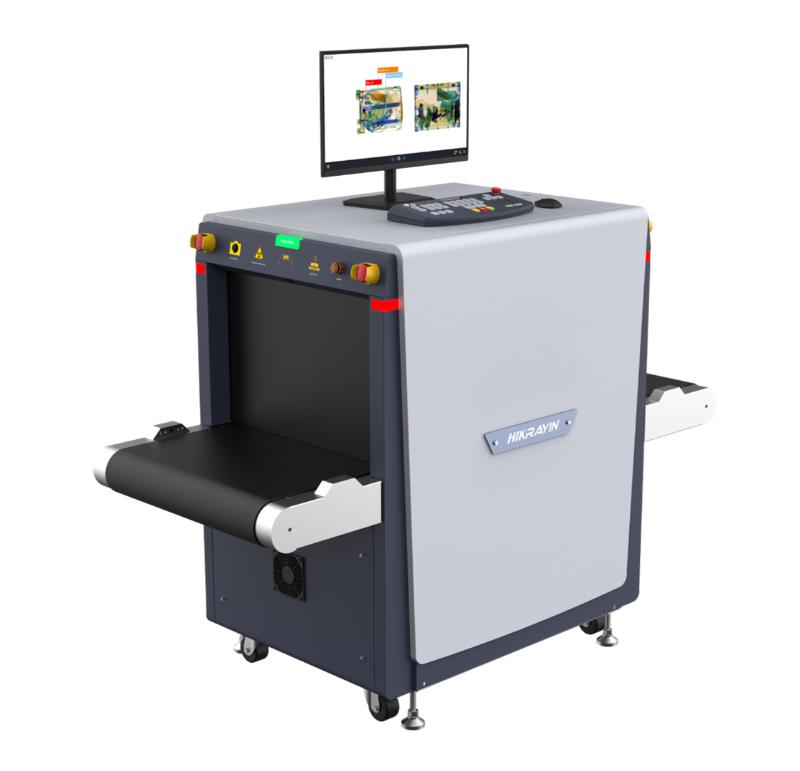

ISD-CA6040S-H
Intelligent X-Ray Security Inspection System
ISD-CA6040S-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Dimension Parameters
| Tunnel Size | 620 mm (W) × 420 mm (H) |
|---|
Specification Parameters
| Max. load | 165 Kg (load even distributed) |
|---|---|
| Conveyor Height | 680 |
| Conveyor speed | 0.2, 0.3, 0.4 m/s Adjustable |
Performance Parameters
| Penetration | 40 mm standard ¹, 42 mm typical ¹ |
|---|---|
| Wire resolution | 38 AWG standard ¹, 40 AWG typical ¹ |
Radiation Dose
| X-ray leakage | ＜1.0 μSv/h at 10 cm away from the device surface, well comply for US FDA standard. |
|---|
Other Parameters
| X-ray generator | Anode Voltage / Current : 180 KV / 1.1 mA Max(Adjustable) Cooling / Work Cycle : Oil-Cooling / Continuous |
|---|
General
| Power Supply | 230 VAC(±10%) 50 Hz/60 Hz(±3Hz) 110 VAC(±10%) 50 Hz/60 Hz(±3Hz) |
|---|---|
| Power Consumption | Max. 0.92 KW |
| Working Temperature | 0°C ~ 40°C |
| Working Humidity | 5% ~ 95% (not condensing) |
| Display | 23.8-inch 1920 × 1080@120Hz LCD screen; Single-Screen; |
| Device Weight | Net: approx. 455 Kg |
