描述

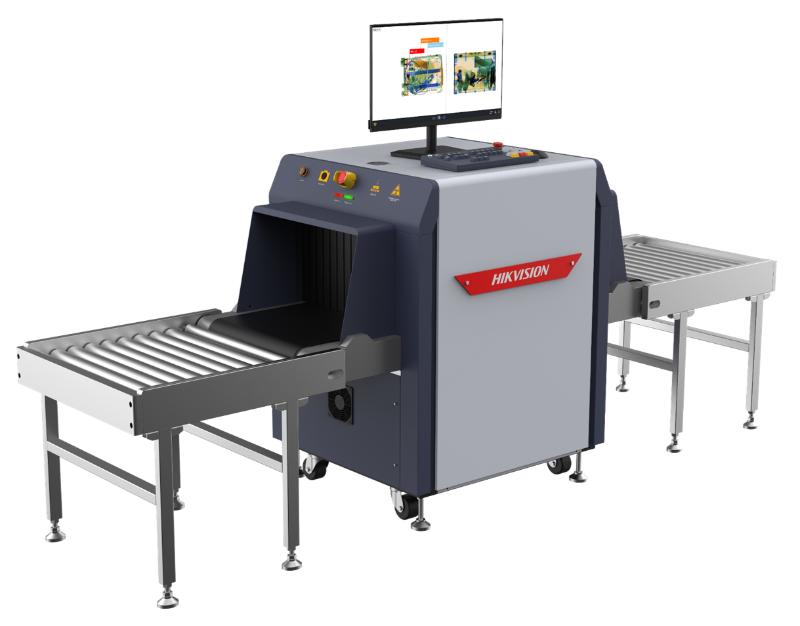

ISD-SC5030S-H2CVL
Intelligent X-Ray Security Inspection System
ISD-SC5030S-H2CVL 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Dimension Parameters
| Tunnel Size | 500 mm × 300 mm (W × H) |
|---|---|
| Appearance and Dimension | 1483 mm × 730 mm × 1060 mm (L × W × H) |
Specification Parameters
| Conveyor Height | 600 mm |
|---|---|
| Conveyor speed | 0.2 m/s, 0.3 m/s adjustable |
Performance Parameters
| Penetration | 30 mm standard, 32 mm typical |
|---|---|
| Wire resolution | 38 AWG standard, 40 AWG typical |
Radiation Dose
| X-ray dose per inspection | ＜ 5 μSv |
|---|---|
| X-ray leakage | < 1.0 μSv/h (100mm away from the device surface) |
General
| Display | 23.8 inch, 1920 × 1080 @ 120Hz, LCD |
|---|
