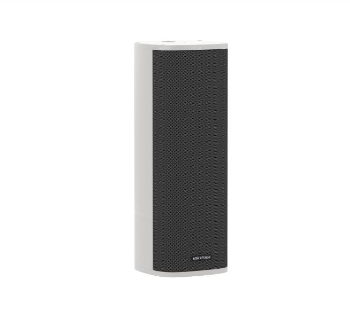

HIKVISION Network Column Speaker 120W
DS-QAZ14A2G1
Specification
Microphone
- Typeelectret
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16 bit
Speaker
- Rated Power120 W
- Impedance4 Ω
- Max. Acoustic Pressure107.5 dBSPL
- Sensitivity(1 M, 1 W)86 dB
- DirectionAll directions
- Frequency Response100 Hz to 20 kHz
- SNR85 dB
Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
- Audio File FormatMP3, WAV
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisEnglish
Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API)ISAPI, ISUP, SIP, RTP
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network communication
Interface
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- APIISAPI, ISUP, SIP
- AlarmAlarm input × 2
- Audio InLine in × 1, phoenix terminal
- LED Indicator
Green light on: normal
Green light flash: intercom in progress
Red light on: start or network disconnection
Red light flash: upgrading
- ResetSupport
General
- Power100 VAC to 240 VAC
- MaterialMetal
- Operating Temperature-40°C to 60 °C(-40 °F to 140 °F)
- Operating Humidity<90% (No condensation)
- Language5 languages: English, French, Spanish, German, Italian
- Dimension160 mm × 160 mm × 446.8 mm(6.3″ × 6.3″ × 17.59″)
- Package Dimension715 mm × 265 mm × 250 mm(28.1″ × 10.4″ × 9.8″)
- WeightApprox. 6.2 kg(13.67 lb.)
- ColorWhite
- With Package WeightApprox. 8 kg(17.64 lb.)
- Packing List
Device × 1
Screw pack × 1
Support × 1
L-shaped wrench × 1
Regulatory Compliance and Safety Information × 1
Approval
- ProtectionIP66: IEC 60529-2013
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- Safety
CB: IEC 62368-1:2014
CE-LVD: EN 62368-1:2014/A11:2017
- Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
