HIKVISION Network Horn Speaker 7W

DS-QAZ1307G1T-E

  • Adopt high-speed industrial grade dual core chips, built-in NOR Flash+EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance.
  • Support secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
  • Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
  • Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
  • Support two-way audio by SIP
分類:

描述

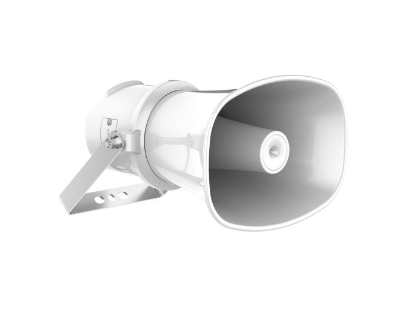

HIKVISION Network Horn Speaker 7W

DS-QAZ1307G1T-E

Specification

Microphone

  • Typeelectret
  • Amount2
  • Frequency Response100 Hz to 20 kHz
  • Sensitivity-42 dBV/Pa
  • Sampling Rate48 kHz
  • Quantization Bits16 bit



Speaker

  • Rated Power7 W
  • Impedance8 Ω
  • Max. Acoustic Pressure121 dBSPL
  • Sensitivity(1 M, 1 W)110 dB
  • Direction70° horizontal by 100° vertical
  • Frequency Response300 Hz to 13 kHz
  • SNR85 dB



Function

  • Audio AlgorithmAEC、AGC、ANS、DRC
  • Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
  • Audio File FormatMP3, WAV
  • NTP TimingSupport
  • BroadcastRegular broadcast, live broadcast, emergency broadcast
  • Two-Way AudioSupport
  • Speech SynthesisEnglish



Network

  • Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  • Interface Protocol (API)ISAPI, ISUP, SIP, RTP
  • ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
  • Communication
  • Communication MethodSupport wired network communication



Interface

  • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
  • Power Output12 VDC, 25 mA(max.)
  • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
  • APIISAPI, ISUP
  • AlarmAlarm input ×1
  • ResetSupport



General

  • MaterialMetal
  • Operating Temperature-30 °C to 60 °C(-22 °F to 140 °F)
  • Operating Humidity＜90% (No condensation)
  • Language5 languages: English, French, Spanish, German, Italian
  • Dimension175 mm × 237 mm × 272 mm(6.9″ × 9.3″ × 10.7″)
  • PowerPOE IEEE 802.3at 16.4w(max)
  • Package Dimension310 mm × 245 mm × 350 mm(12.2″ × 9.6″ × 13.8″)
  • WeightApprox. 2.1 kg (4.63 lb.)
  • ColorWhite
  • With Package WeightApprox. 3.0 kg (6.61 lb.)
  • Packing List

    Device × 1

    Regulatory Compliance and Safety Information × 1



Approval

  • ProtectionIP67
  • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
  • Safety

    CB: IEC 62368-1:2014

    CE-LVD: EN 62368-1:2014/A11:2017

  • Environment

    CE-RoHS: 2011/65/EU

    WEEE: 2012/19/EU

    Reach: Regulation (EC) No 1907/2006
