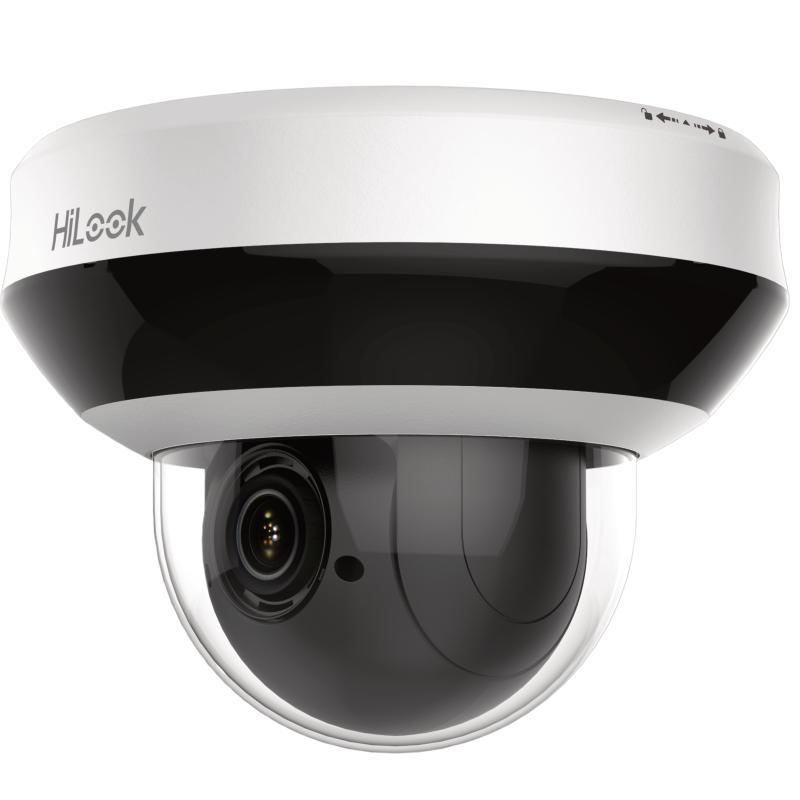

PTZ-N2404I-DE3
2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome
PTZ-N2404I-DE3 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Lens
| FOV | Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele) |
|---|---|
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F2.7;F1.5 to F2.7 |
Smart Features
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception |
|---|---|
| Smart Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| ROI | Main stream, sub-stream, and third stream respectively support two fixed areas. |
Network
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|---|---|
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | iVMS-4200, HikCentral, HiLookVision |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51; IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
| Image Enhancement | 3D DNR, BLC, HLC, EIS, Regional Exposure, Regional Focus;3D DNR, BLC, HLC, Regional Exposure, Regional Focus |
|---|---|
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240);50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Interface
| Audio Input | 1-ch audio input (line in) |
|---|---|
| Audio Output | 1-ch audio output (line out) |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
Camera Module
| Image Sensor | 1/3" progressive scan CMOS;1/2.8" progressive scan CMOS |
|---|---|
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR;Color: 0.005 Lux @(F1.5, AGC ON),B/W: 0.001 Lux @(F1.5, AGC ON),0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
General
| Material | Aluminum alloy, PC, PC+ABS |
|---|---|
| Dimensions | Ø130.7 mm × 101.7 mm (Ø5.15" × 4.00") |
| Protection Level | IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power | 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR) |
| Working Temperature | -20°C to 60°C (-4°F to 140°F) |
| Working Humidity | ≤ 90% |
Supplement Light
| IR Distance | 20 m |
|---|---|
| Smart IR | Support |
PTZ
| Movement Range (Pan) | 0° to 330°;0° to 355° |
|---|---|
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Movement Range (Tilt) | From 0° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Power-off Memory | Support |
Compression Standard
| H.264+ | Support |
|---|---|
| H.265+ | Support |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| SVC | Support |
